TM-35型 針盤量錶（小錶型）

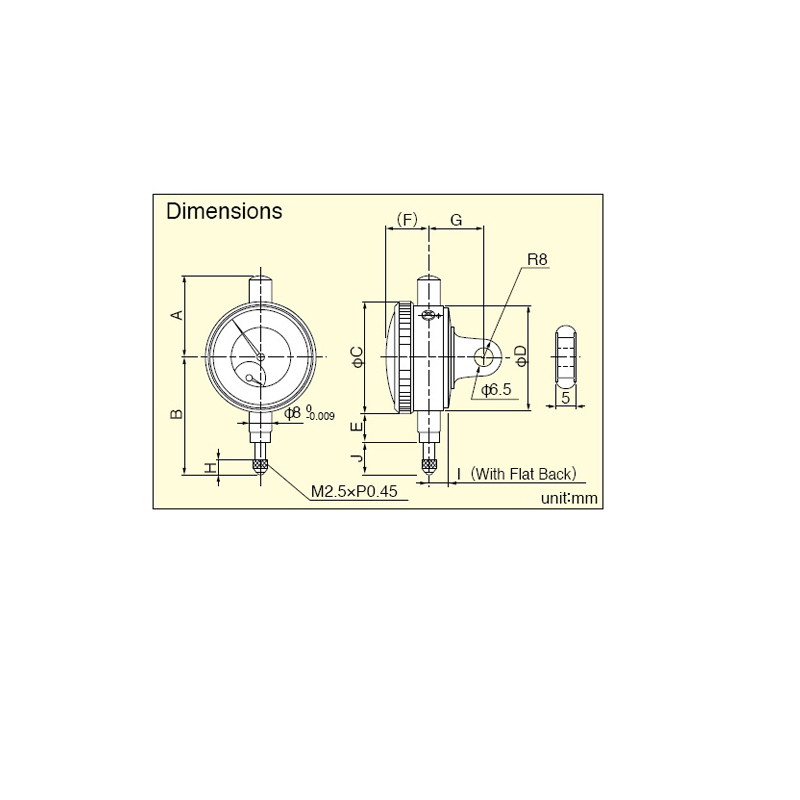

尺寸規格
| 型 號 | A | B | C | D | E | F | G | H | I | J |

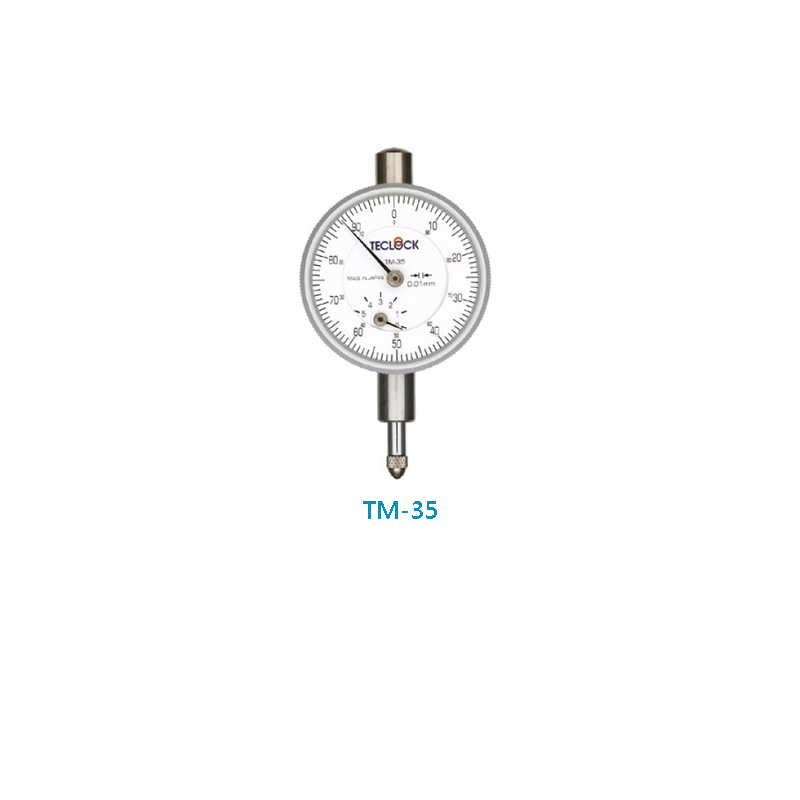

| TM-35 | 27.4 | 41.3 | 39 | 36.5 | 10 | 14.5 | 19 | 5 | 6.2 | 11.8 |

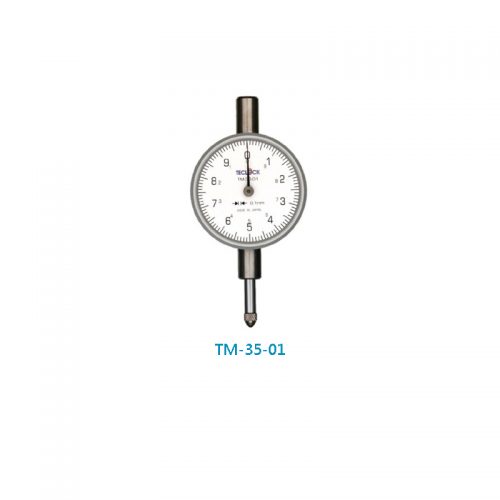

| TM-35-01 | 32.5 | 46 | 39 | 36.5 | 10 | 14.5 | 19 | 5 | 6.2 | 16.5 |

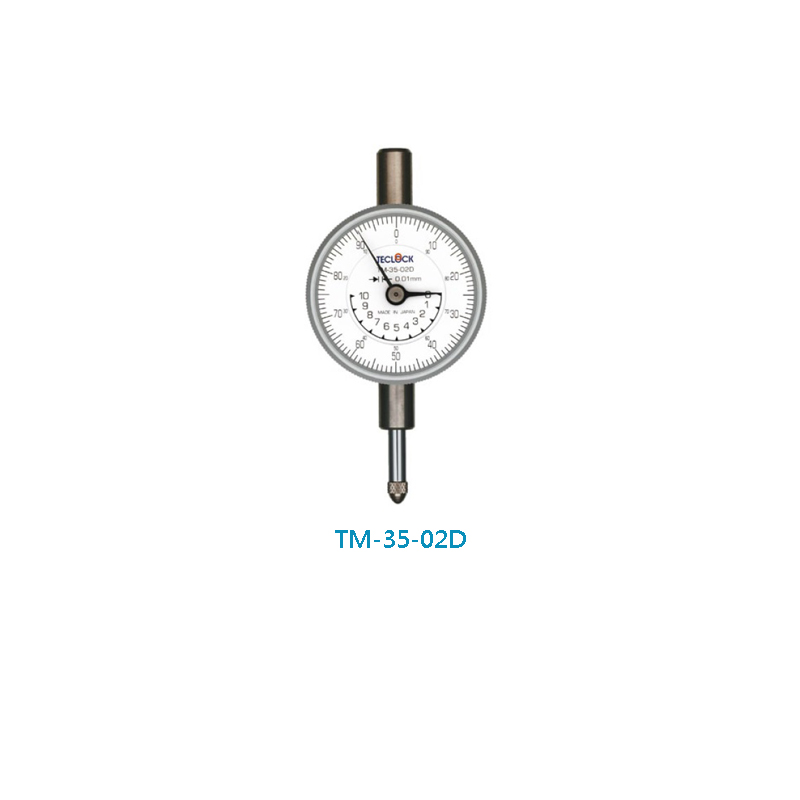

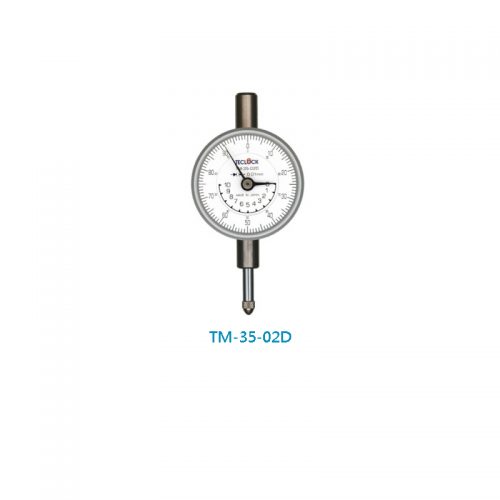

| TM-35-02D | 32.5 | 46 | 39 | 36.5 | 10 | 16.5 | 19 | 5 | 6.2 | 16.5 |

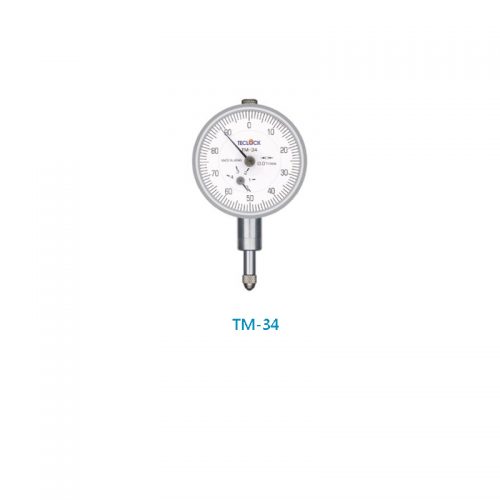

| TM-34 | 20 | 39.5 | 35 | 32 | 10 | 13 | 19 | 5 | 6.5 | 12 |

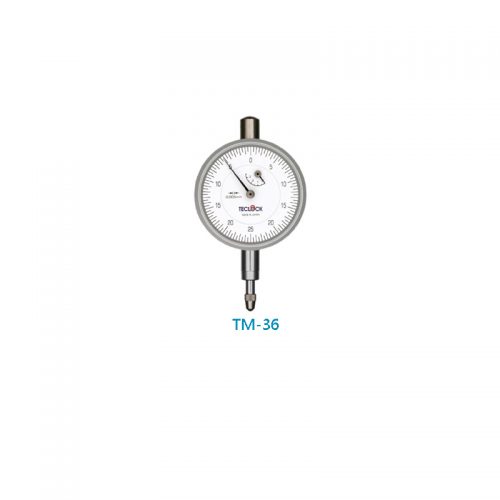

| TM-36 | 33.5 | 50 | 47 | 44 | 13 | 15.5 | 19.7 | 7.5 | 7 | 13.5 |

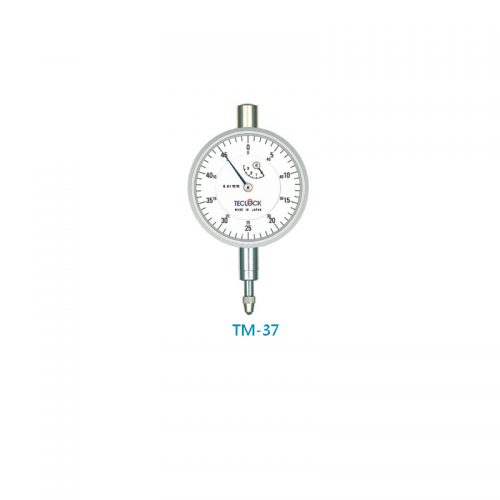

| TM-37 | 33.5 | 50 | 47 | 44 | 13 | 15.5 | 19.7 | 7.5 | 7 | 13.5 |
Product Description
| 型 號 | 最小讀值
mm |
量測範圍
mm |
重複精度
μm |
指 示 誤 差 μm | 誤差
μm |
標準測頭 | 測定壓力
N |
||
| 相鄰誤差 | 1回轉 | 全範圍 | |||||||

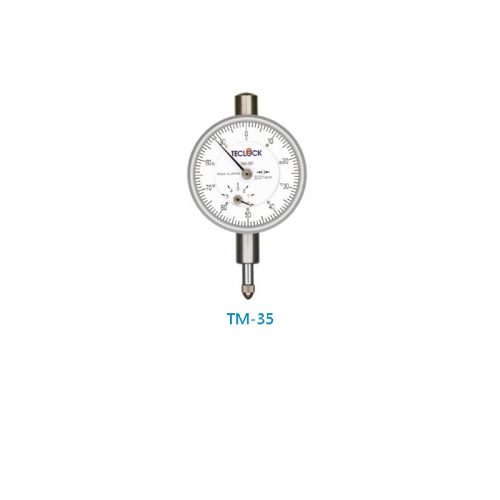

| TM-35 | 0.01 | 5 | 5 | 9 | ±13 | ±15 | 6 | ZS-014 | 1.3以下 |

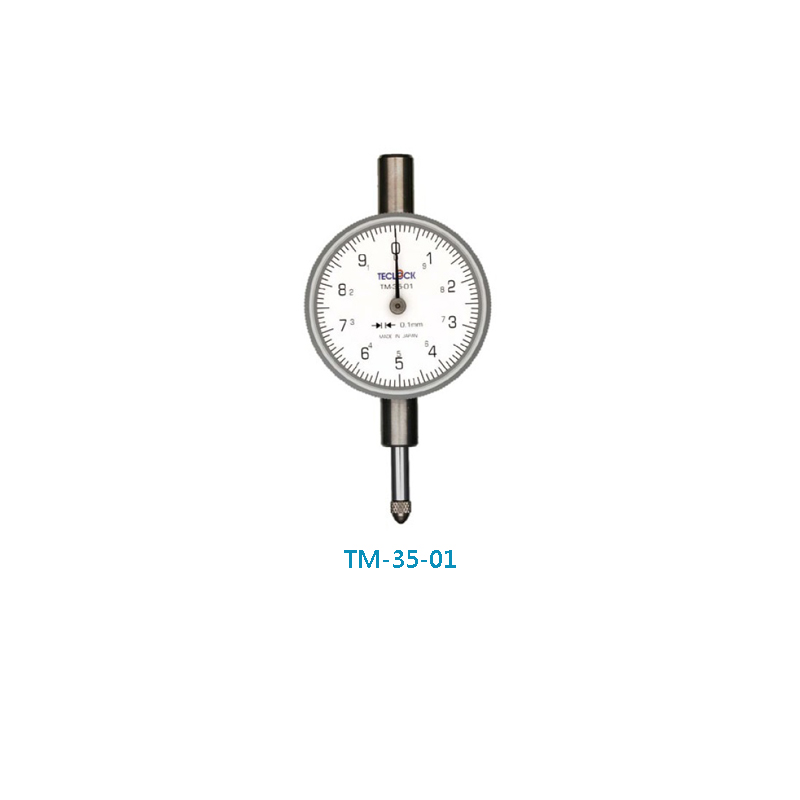

| TM-35-01 | 0.1 | 10 | — | — | — | ±50 | — | ZS-014 | 1.5以下 |
| TM-35-02D | 0.01 | 10 | 5 | 9 | ±13 | ±18 | 7 | ZS-014 | 1.6以下 |

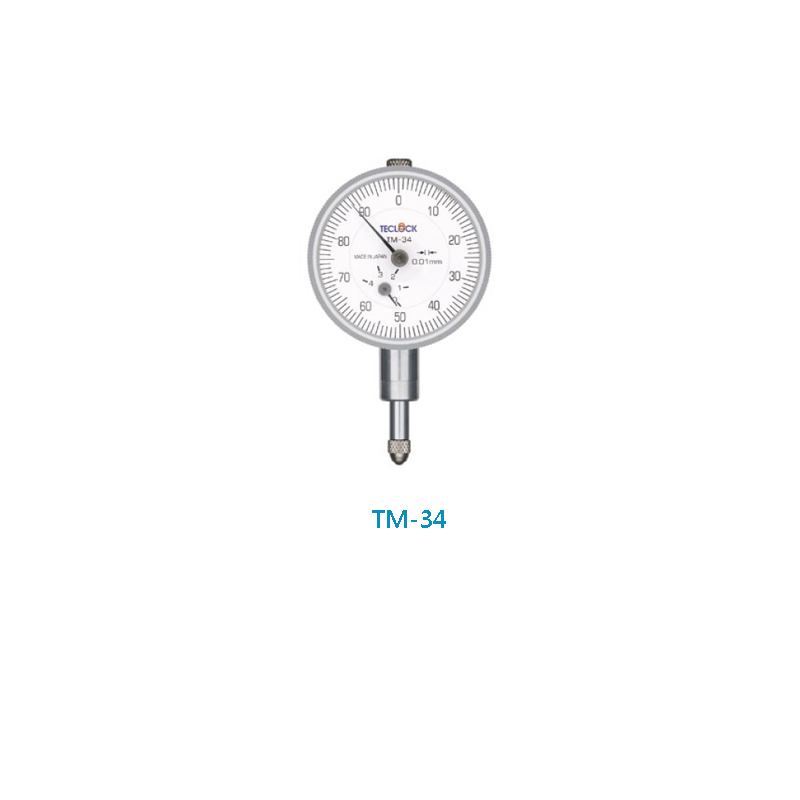

| TM-34 | 0.01 | 4 | 5 | 8 | ±11 | ±15 | 6 | ZS-014 | 1.0以下 |
| TM-36 | 0.005 | 3.5 | 5 | 8 | ±10 | ±12 | 5 | ZS-017 | 1.2以下 |

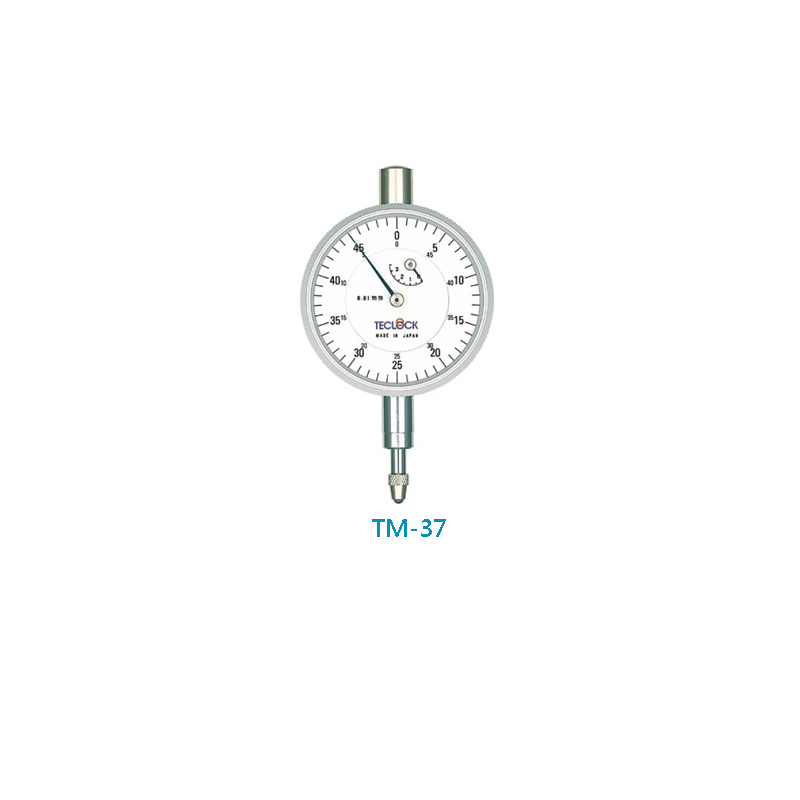

| TM-37 | 0.01 | 3.5 | 5 | 8 | ±10 | ±12 | 6 | ZS-017 | 1.2以下 |
