TM-121型 針盤量錶 0.01mm

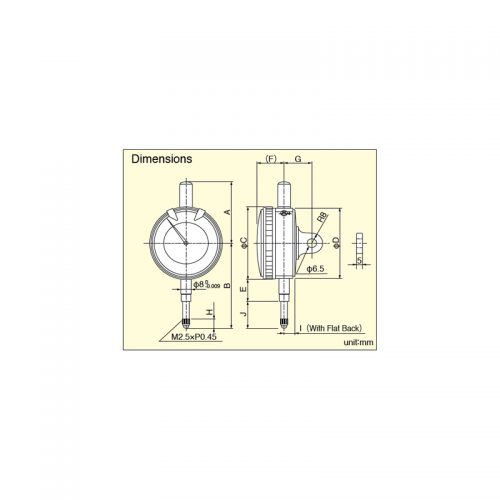

尺寸規格：
| 型 號 | A | B | C | D | E | F | G | H | I | J |

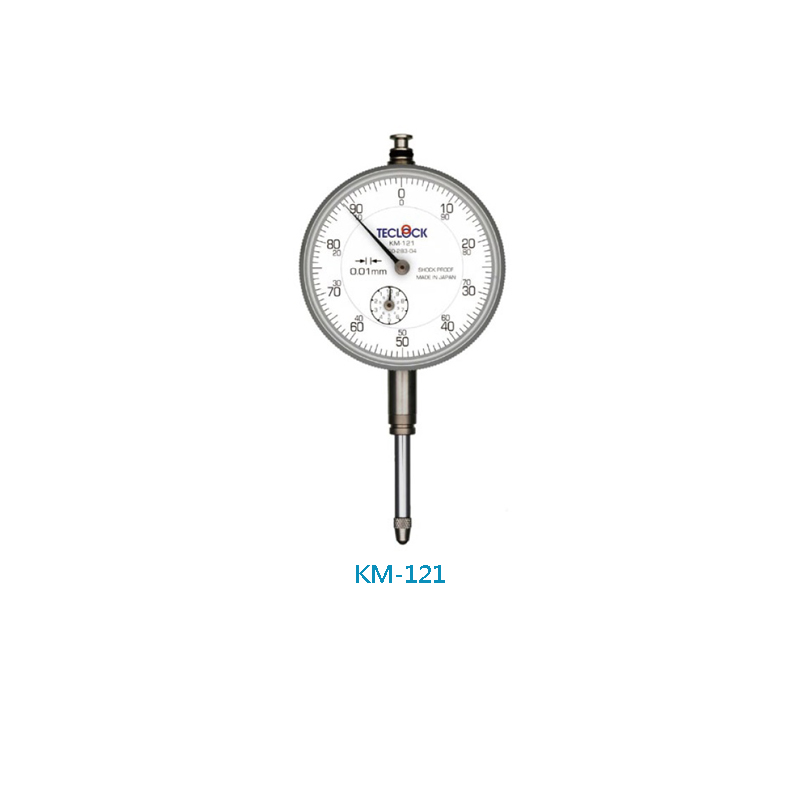

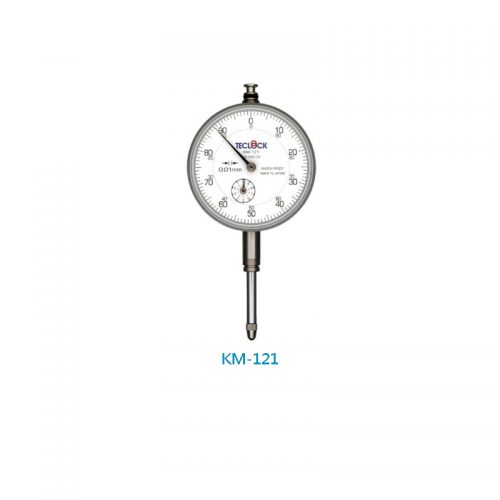

| KM-121 | 36 | 75 | 55 | 52 | 18 | 15.5 | 20 | 7.5 | 7.8 | 29.5 |

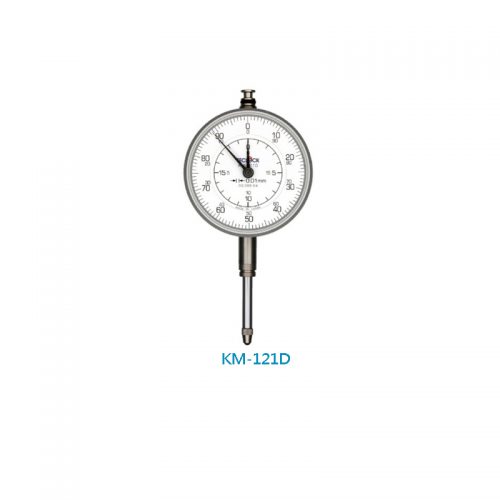

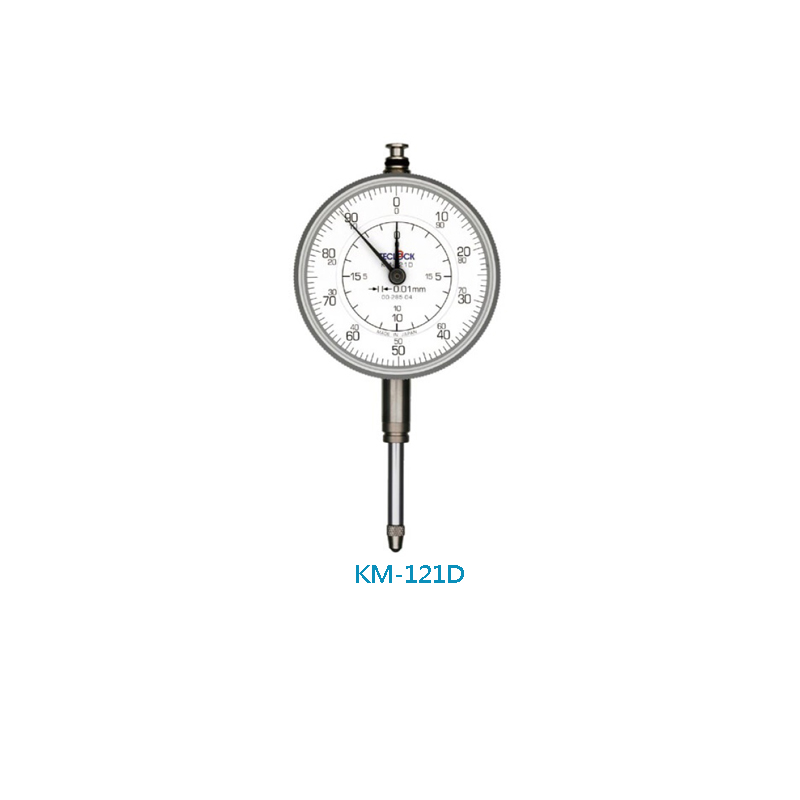

| KM-121D | 36 | 75 | 55 | 52 | 18 | 17.6 | 20 | 7.5 | 7.8 | 29.5 |

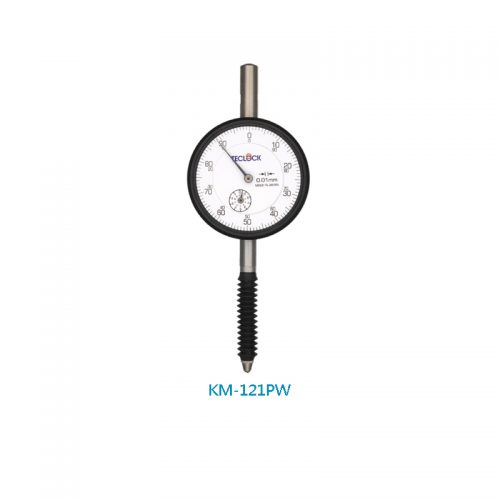

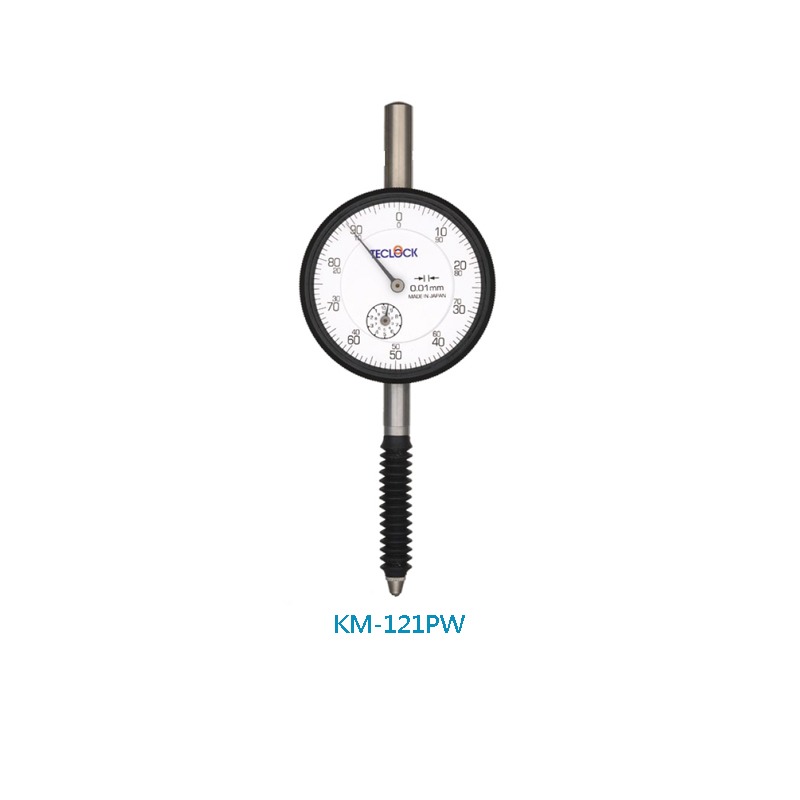

| KM-121PW | 55 | 89 | 56 | 52 | (17.5) | 14.5 | 20 | 11 | 8.3 | (43.5) |

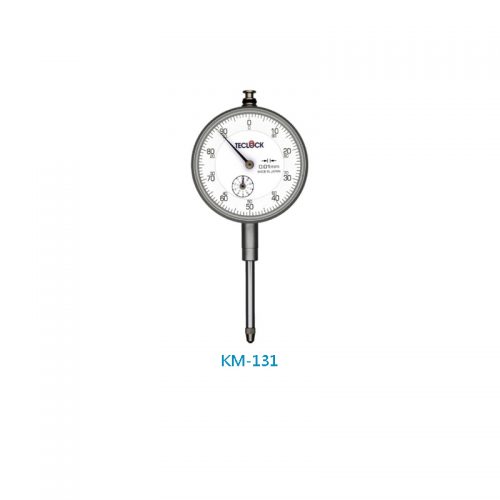

| KM-131 | 36 | 86 | 55 | 52 | 19 | 15.5 | 20 | 7.5 | 8 | 39.5 |

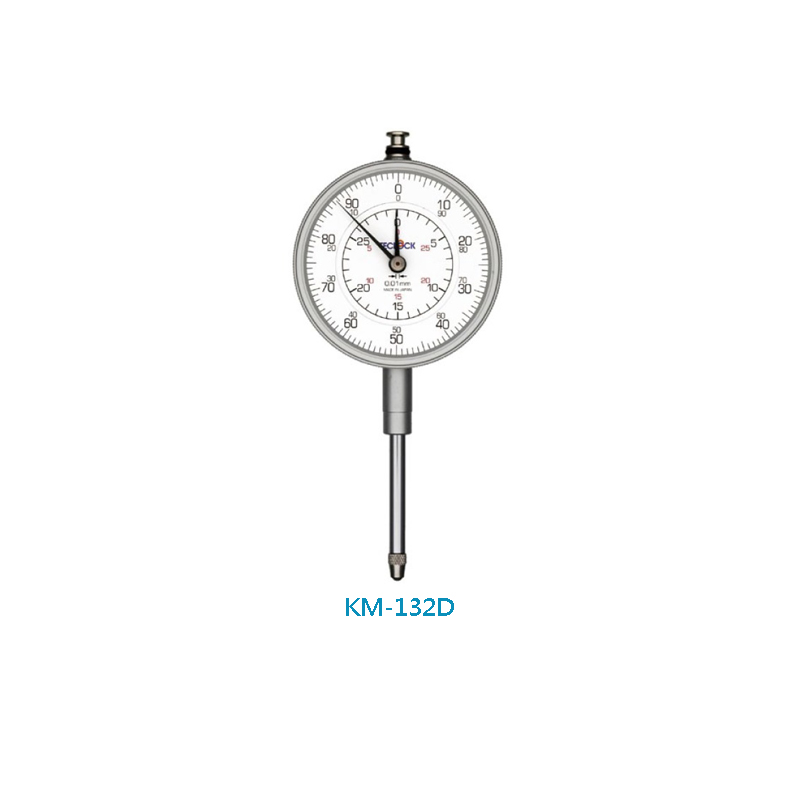

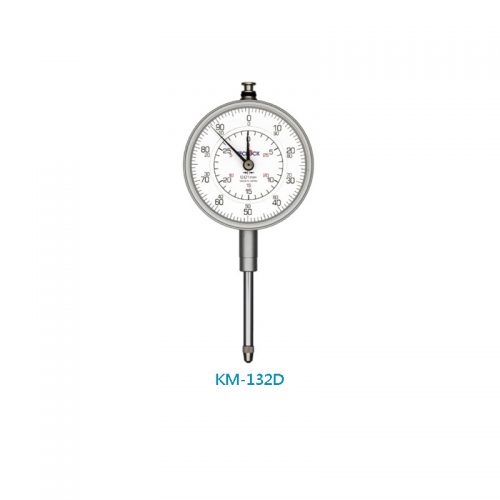

| KM-132D | 36 | 86 | 55 | 52 | 19 | 17.3 | 20 | 7.5 | 8 | 39.5 |

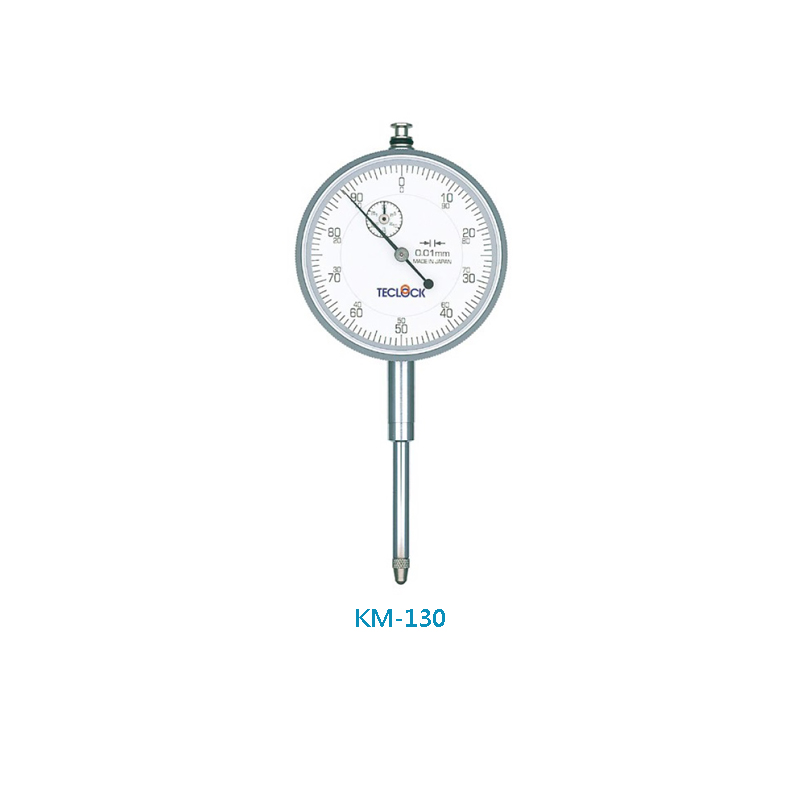

| KM-130 | 38.5 | 92 | 59 | 54.5 | 22.7 | 17.5 | 22 | 7.5 | 9.6 | 39.8 |

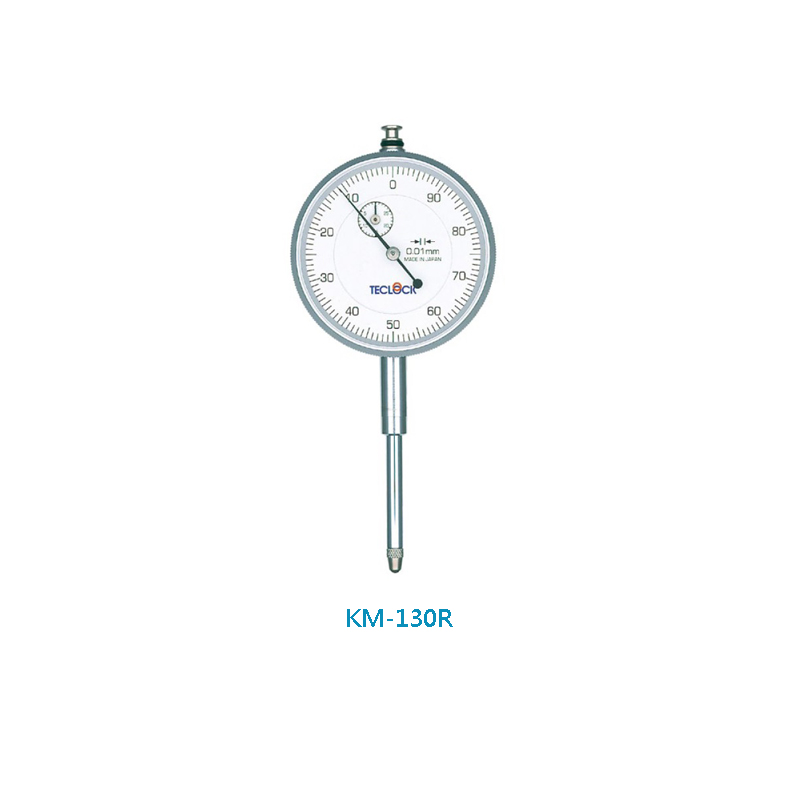

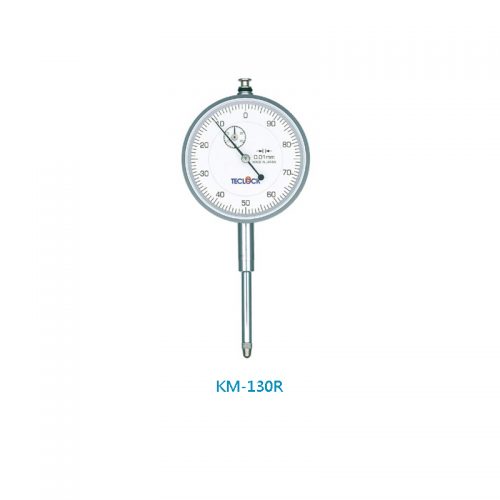

| KM-130R | 38.5 | 92 | 59 | 54.5 | 22.7 | 17.5 | 22 | 7.5 | 9.6 | 39.8 |

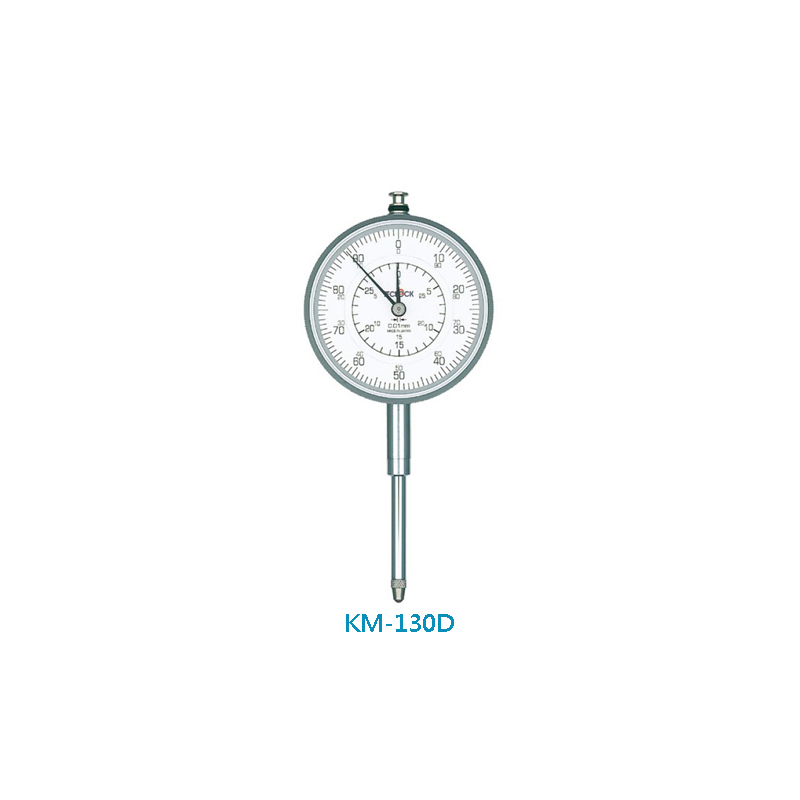

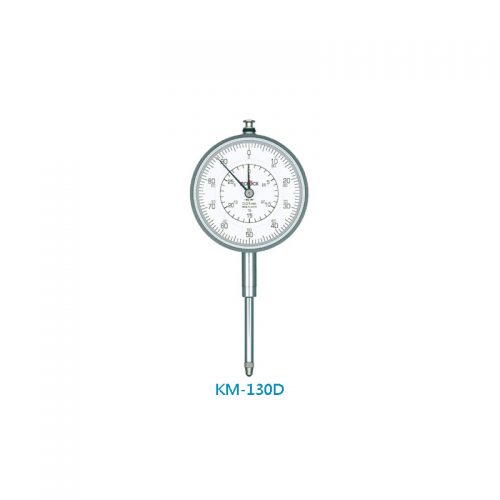

| KM-130D | 38.5 | 92 | 59 | 54.5 | 22.7 | 19.5 | 22 | 7.5 | 9.6 | 39.8 |
Product Description
| 型 號 | 最小讀值
mm |
量測範圍
mm |
重複精度
μm |
指 示 誤 差 μm | 誤差
μm |
標準測頭 | 測定壓力
N |
||
| 相鄰誤差 | 1回轉 | 全範圍 | |||||||
| KM-121 | 0.01 | 20 | 5 | 10 | ±15 | ±20 | 7 | ZS-017 | 2.2以下 |
| KM-121D | 0.01 | 20 | 5 | 10 | ±15 | ±20 | 7 | ZS-017 | 2.2以下 |
| KM-121PW | 0.01 | 20 | 5 | 10 | ±15 | ±20 | 7 | ZS-028 | 2.2以下 |
| KM-131 | 0.01 | 30 | 5 | 14 | ±18 | ±35 | 8 | ZS-017 | 2.2以下 |
| KM-132D | 0.01 | 30 | 5 | 14 | ±18 | ±35 | 8 | ZS-017 | 2.2以下 |
| KM-130 | 0.01 | 30 | 5 | 14 | ±18 | ±25 | 7 | ZS-017 | 2.2以下 |
| KM-130R | 0.01 | 30 | 5 | 14 | ±18 | ±25 | 7 | ZS-017 | 2.2以下 |
| KM-130D | 0.01 | 30 | 5 | 14 | ±18 | ±25 | 7 | ZS-017 | 2.2以下 |
