TM-110型 針盤量錶 0.01mm

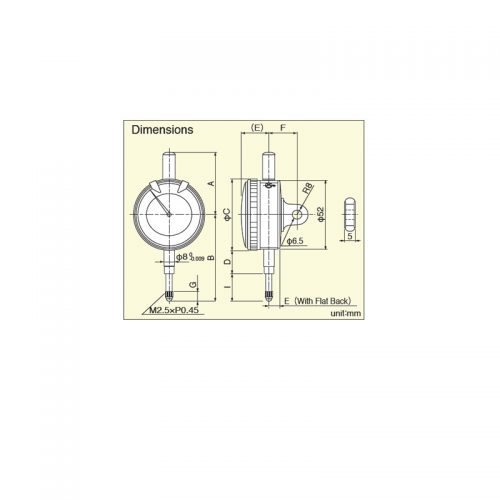

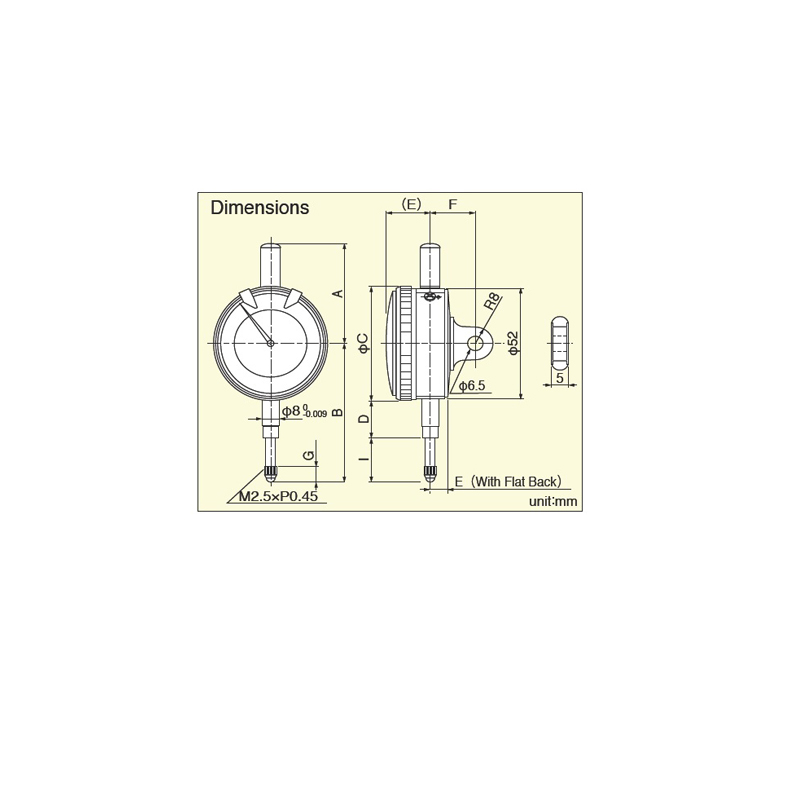

尺寸規格：
| 型 號 | A | B | C | D | E | F | G | H | I |

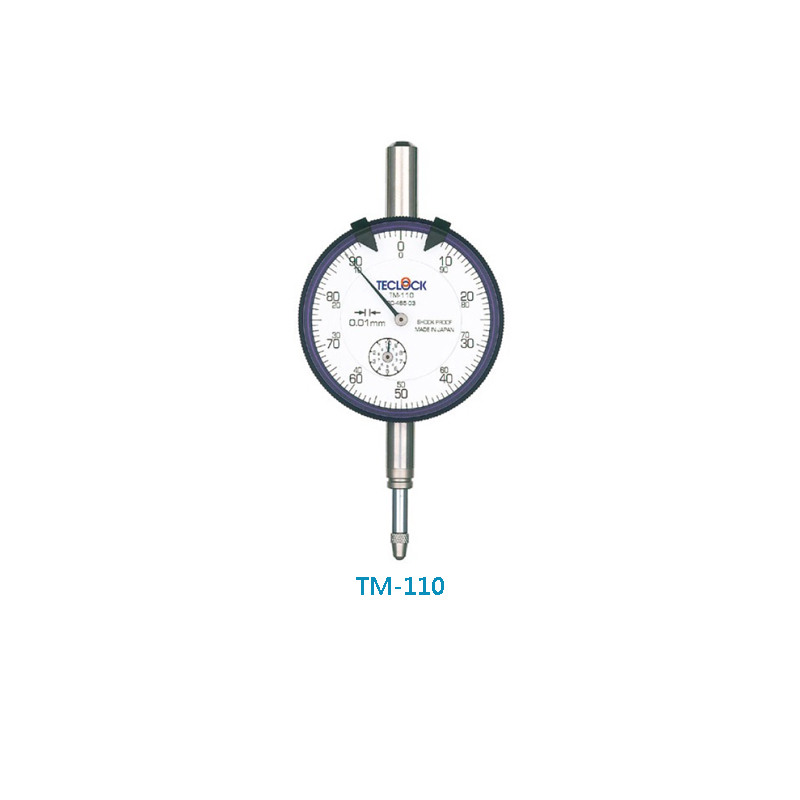

| TM-110 | 48 | 65 | 55 | 18 | 15.5 | 20 | 7.5 | 7.8 | 19.5 |

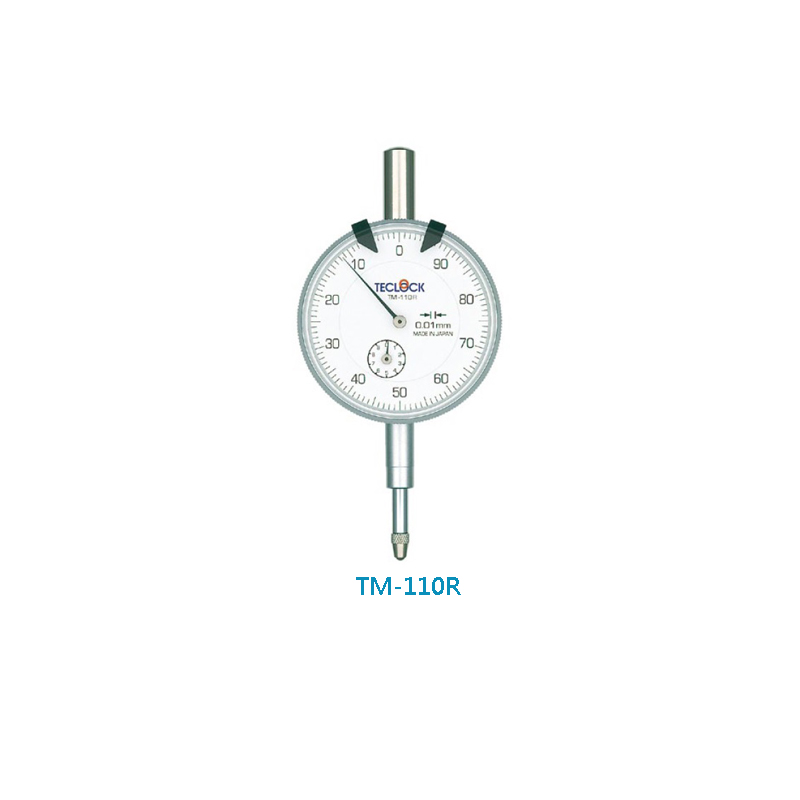

| TM-110R | 48 | 65 | 55 | 18 | 15.5 | 20 | 7.5 | 7.8 | 19.5 |

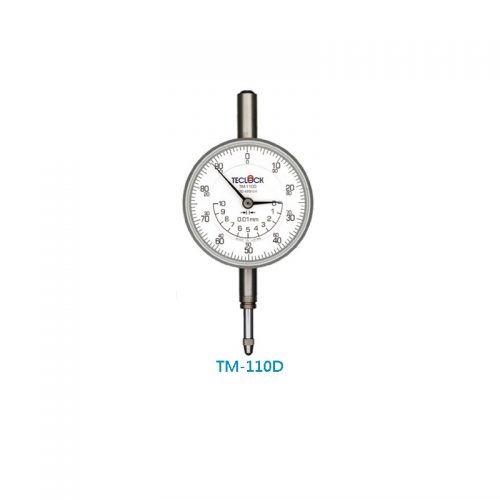

| TM-110D | 48 | 65 | 55 | 18 | 17.6 | 20 | 7.5 | 7.8 | 19.5 |

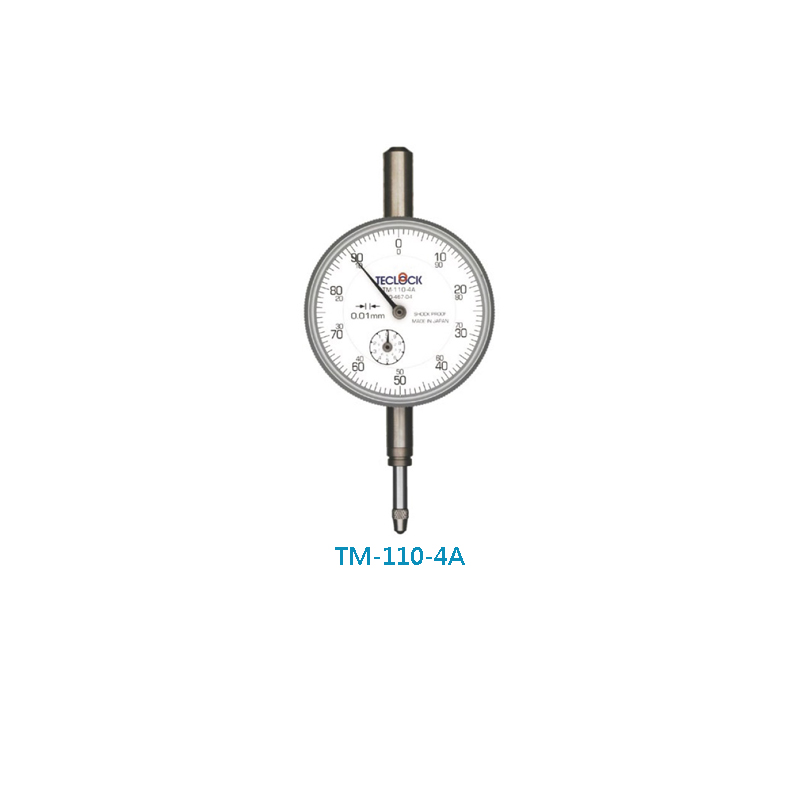

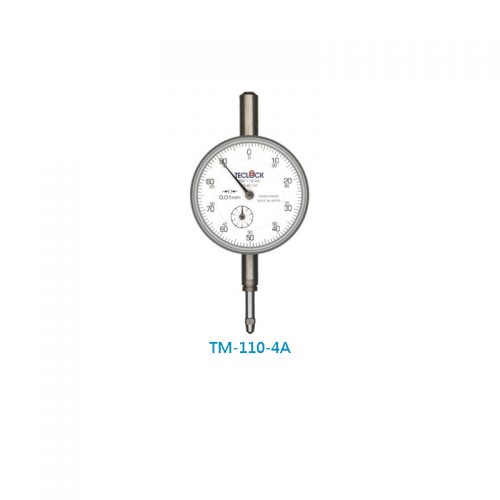

| TM-110-4A | 48 | 65 | 55 | 18 | 15.5 | 20 | 7.5 | 7.8 | 19.5 |

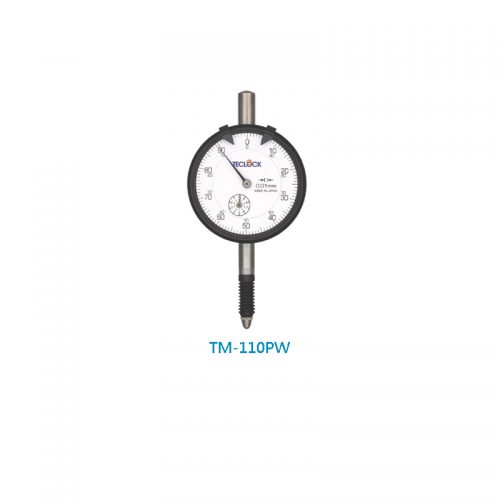

| TM-110PW | 44.5 | 68.5 | 56 | (17.5) | 14.5 | 20 | 11 | 8.3 | 23.0 |

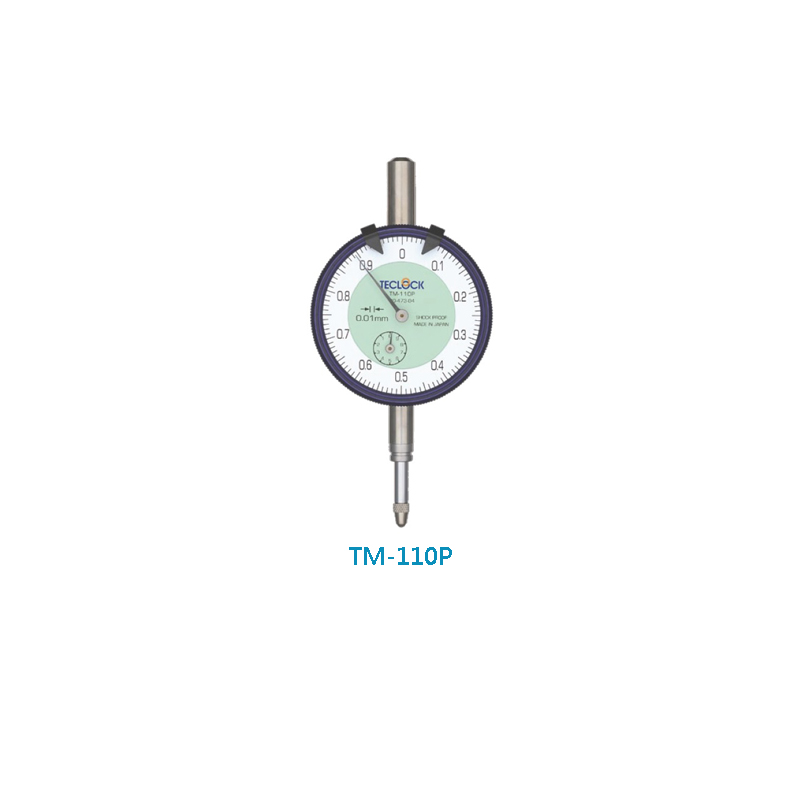

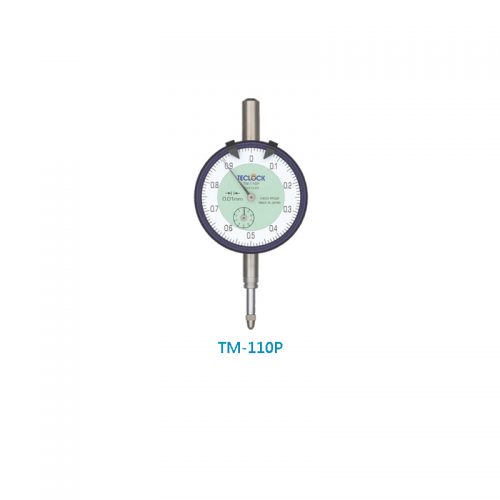

| TM-110P | 48 | 65 | 55 | 18 | 15.5 | 20 | 7.5 | 7.8 | 19.5 |

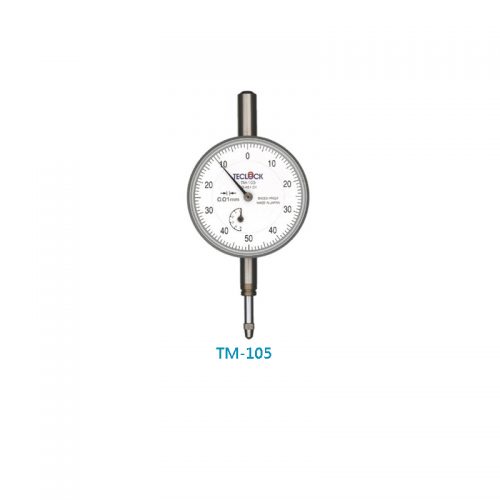

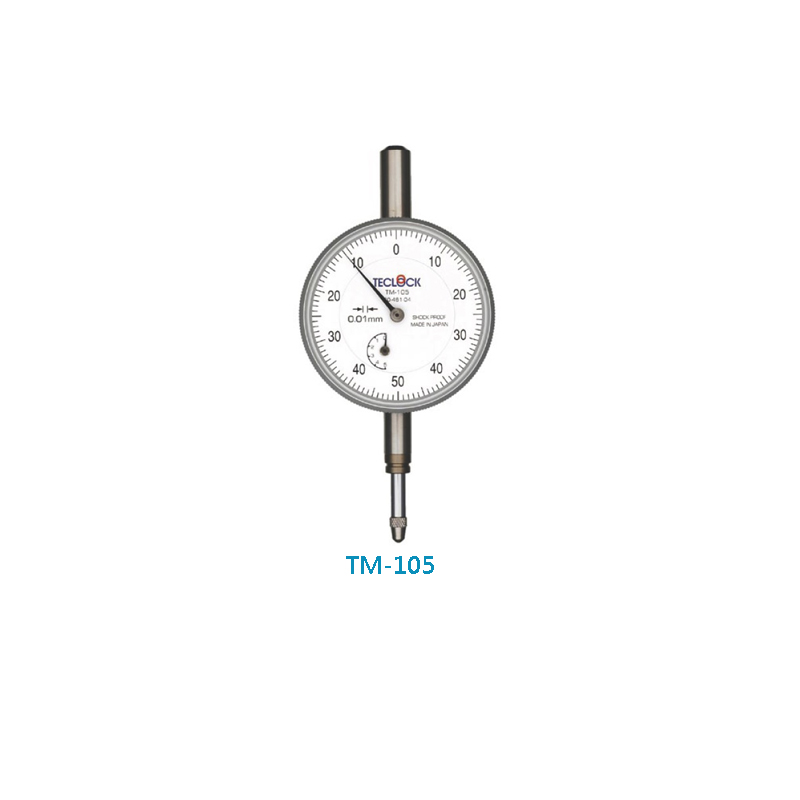

| TM-105 | 48 | 65 | 55 | 18 | 15.5 | * | 7.5 | 7.8 | 19.5 |

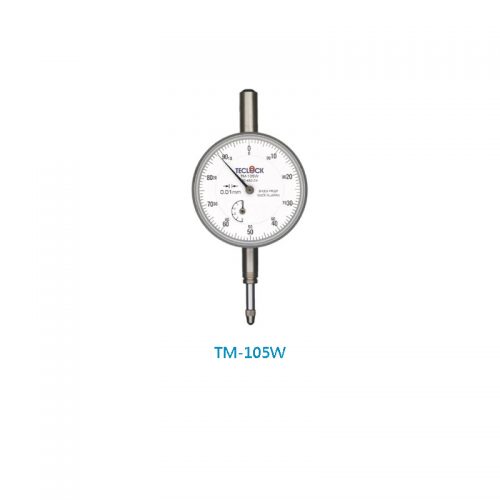

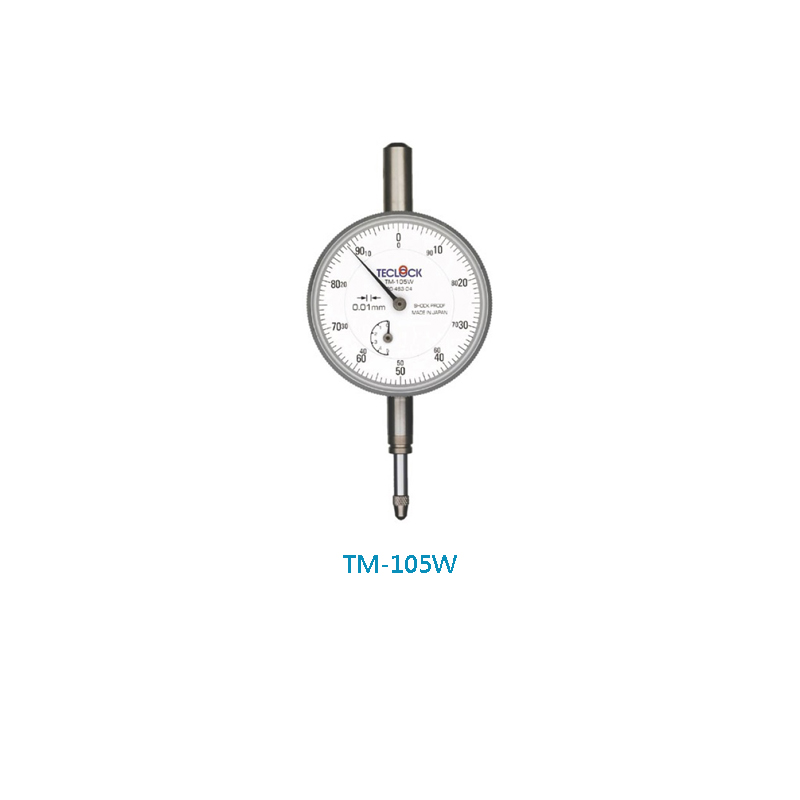

| TM-105W | 48 | 65 | 55 | 18 | 15.5 | 20 | 7.5 | 7.8 | 19.5 |

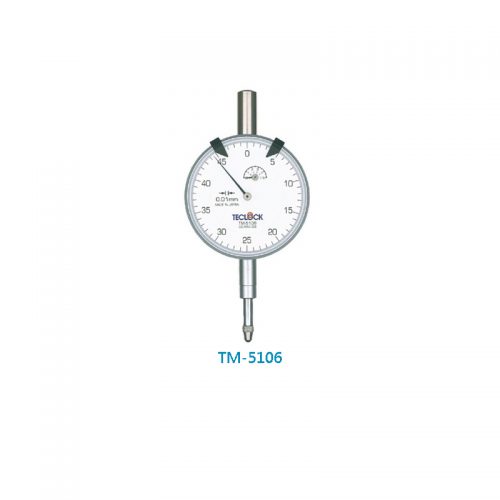

| TM-5106 | 48 | 65 | 55 | 18 | 15.5 | 20 | 7.5 | 7.8 | 19.5 |

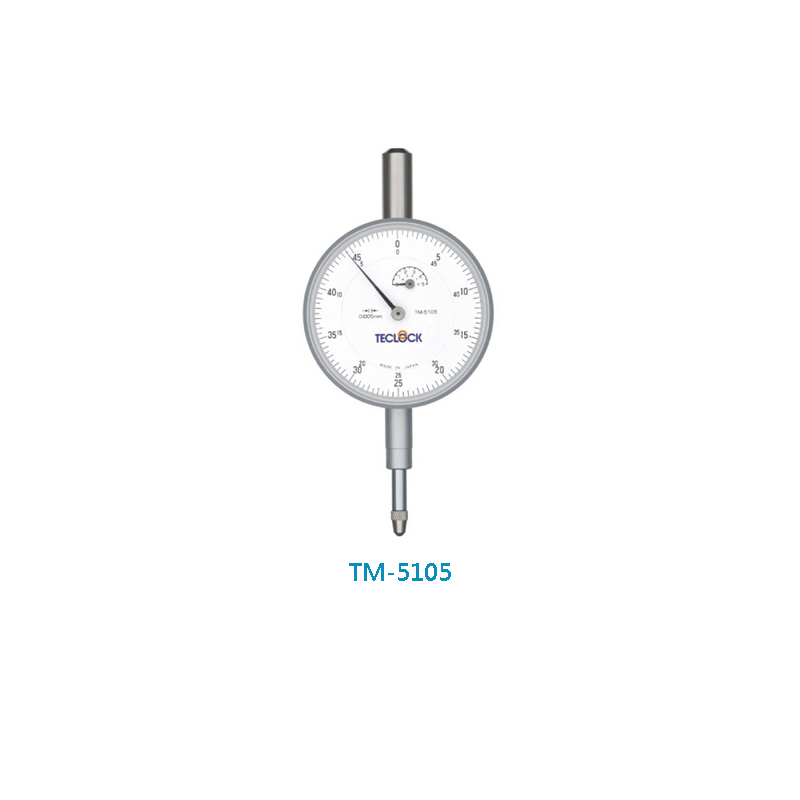

| TM-5105 | 48 | 65 | 55 | 18 | 15.5 | 20 | 7.5 | 7.8 | 19.5 |
Product Description
| 型 號 | 最小讀值
mm |
量測範圍
mm |
重複精度
μm |
指 示 誤 差 μm | 誤差
μm |
標準測頭 | 測定壓力
N |
||||
| 相鄰誤差 | 1/2回轉 | 1回轉 | 2回轉 | 全範圍 | |||||||

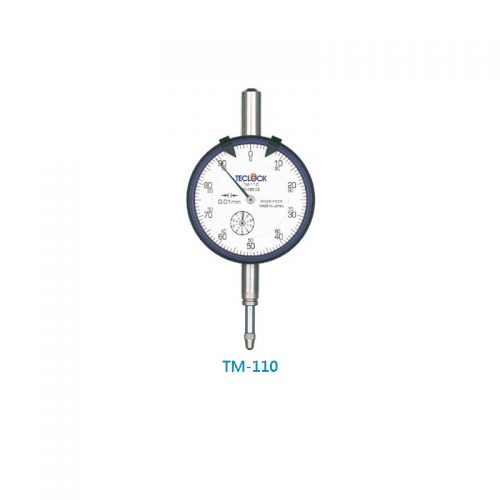

| TM-110 | 0.01 | 10 | 5 | 8 | ±9 | ±10 | ±15 | ±15 | 5 | ZS-017 | 1.4以下 |

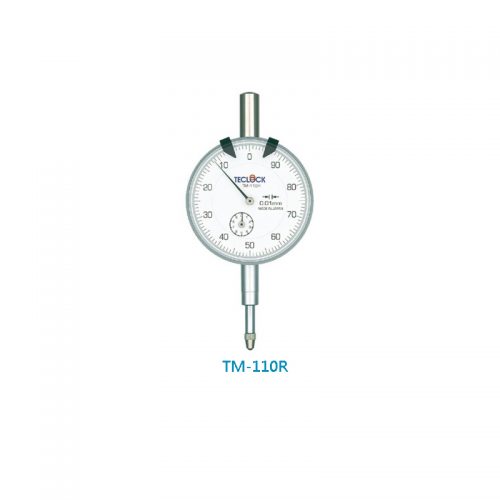

| TM-110R | 0.01 | 10 | 5 | 8 | ±9 | ±10 | ±15 | ±15 | 5 | ZS-017 | 1.4以下 |

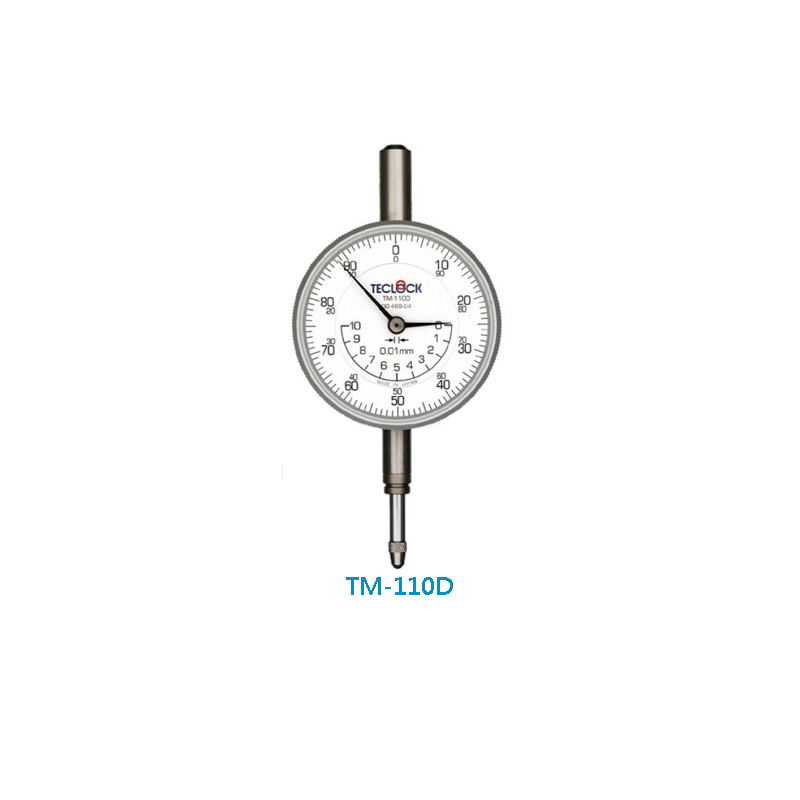

| TM-110D | 0.01 | 10 | 5 | 8 | ±9 | ±10 | ±15 | ±15 | 5 | ZS-017 | 1.4以下 |
| TM-110-4A | 0.01 | 10 | 5 | 8 | ±9 | ±10 | ±15 | ±15 | 5 | ZS-017 | 1.4以下 |

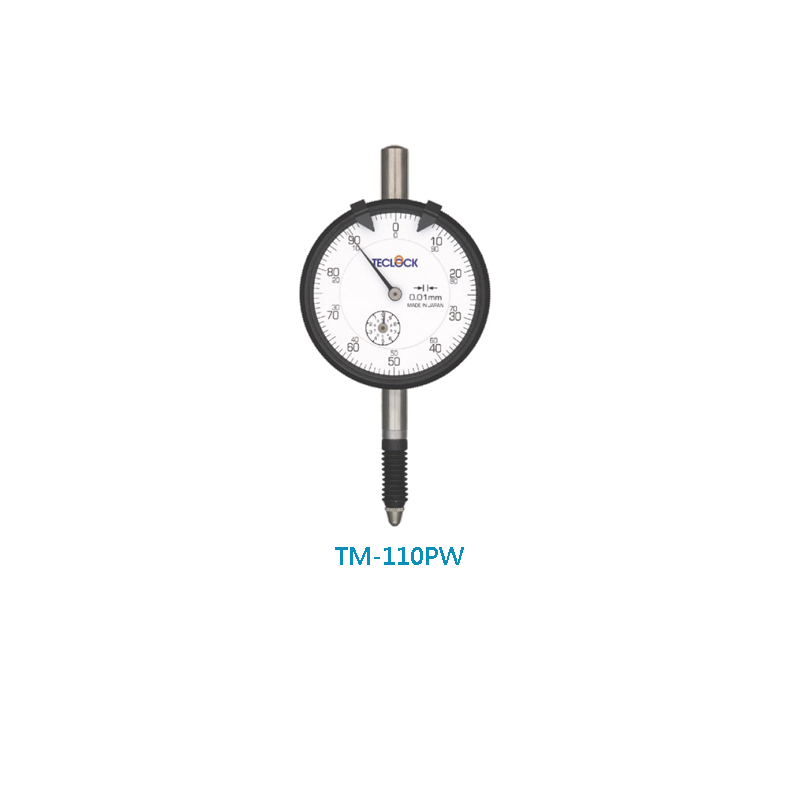

| TM-110PW | 0.01 | 10 | 5 | 8 | ±9 | ±10 | ±15 | ±15 | 5 | ZS-028 | 1.4以下 |
| TM-110P | 0.01 | 10 | 5 | 8 | ±9 | ±10 | ±15 | ±15 | 5 | ZS-017 | 1.4以下 |
| TM-105 | 0.01 | 5 | 5 | 8 | ±9 | ±10 | ±12 | ±12 | 5 | ZS-017 | 1.4以下 |
| TM-105W | 0.01 | 5 | 5 | 8 | ±9 | ±10 | ±12 | ±12 | 5 | ZS-017 | 1.4以下 |

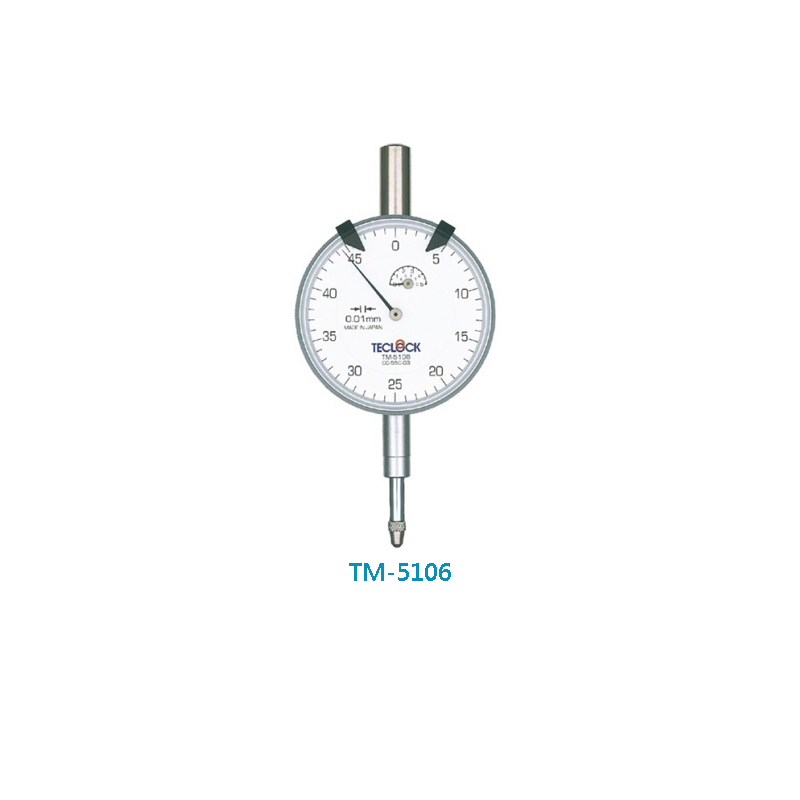

| TM-5106 | 0.01 | 5 | 3 | 7 | ±8 | ±9 | ±10 | ±12 | 5 | ZS-017 | 1.4以下 |

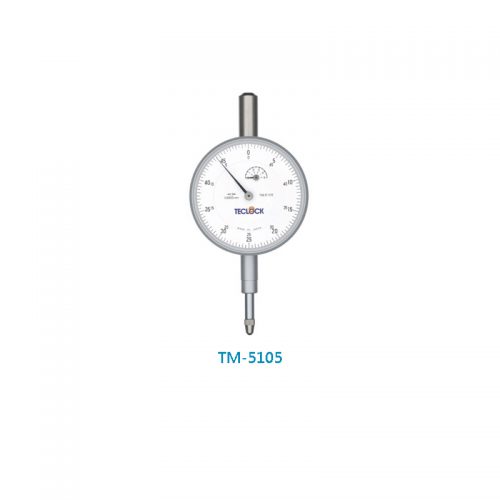

| TM-5105 | 0.005 | 5 | 3 | 7 | ±8 | ±9 | ±10 | ±12 | 5 | ZS-017 | 1.4以下 |
