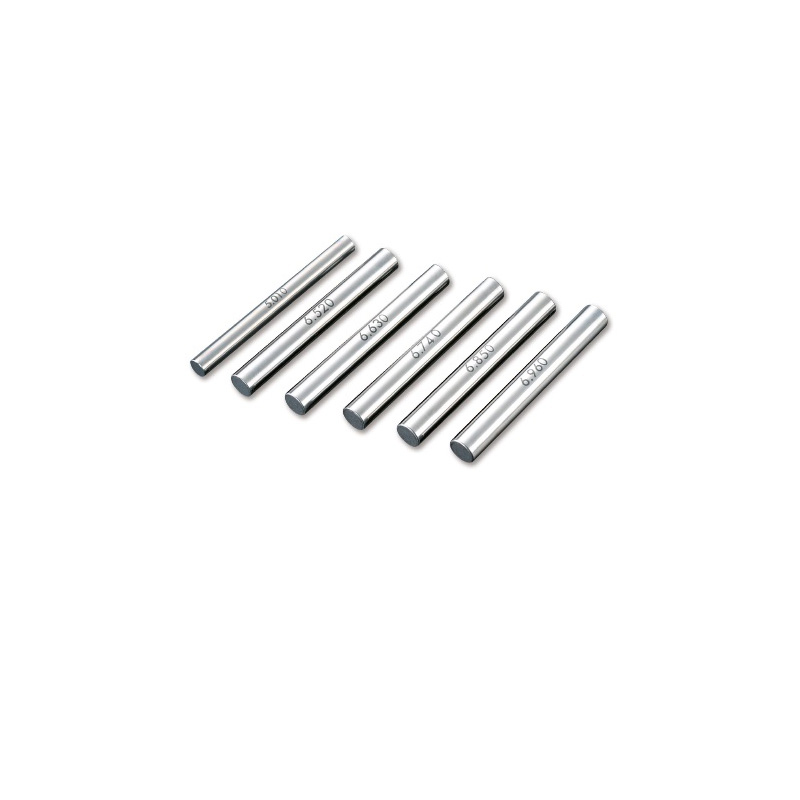

SA系列 高精度針規 間隔0.001mm
全製品經深冷處理。
單支可零售。
精度。規格。
| 表示規格
mm |
尺寸區分
mm |
長 度
mm |
徑精度
µm |
真圓度
µm |
圓柱度
µm |
硬 度
HV |
| 0.100 … 0.199 | 0.001間隔 | 40 | ±0.3 | 0.3 | 0.6 | 650以上 |
| 0.200 … 0.999 | ||||||
| 1.000 … 7.000 | 50 | |||||
| 7.001 … 7.010 | ||||||
| 7.011 … 10.00 | ±0.5 | 0.5 | 1.0 |
Product Description
| 套裝型號 | 量規尺寸
( 表示徑規格：mm ) |
套裝數量 |
| SA-03 | 0.297。0.298。……….。0.310 | 14 |
| SA-04 | 0.397。0.398。……….。0.410 | 14 |
| SA-05 | 0.497。0.498。……….。0.510 | 14 |
| SA-06 | 0.597。0.598。……….。0.610 | 14 |
| SA-07 | 0.697。0.698。……….。0.710 | 14 |
| SA-08 | 0.797。0.798。……….。0.810 | 14 |
| SA-09 | 0.897。0.898。……….。0.910 | 14 |
| SA-10 | 0.997。0.998。……….。1.010 | 14 |
| SA-11 | 1.097。1.098。……….。1.110 | 14 |
| SA-12 | 1.197。1.198。……….。1.210 | 14 |
| SA-13 | 1.297。1.298。……….。1.310 | 14 |
| SA-14 | 1.397。1.398。……….。1.410 | 14 |
| SA-15 | 1.497。1.498。……….。1.510 | 14 |
| SA-16 | 1.597。1.598。……….。1.610 | 14 |
| SA-17 | 1.697。1.698。……….。1.710 | 14 |
| SA-18 | 1.797。1.798。……….。1.810 | 14 |
| SA-19 | 1.897。1.898。……….。1.910 | 14 |
| SA-20 | 1.997。1.998。……….。2.010 | 14 |
| SA-21 | 2.097。2.098。……….。2.110 | 14 |
| SA-22 | 2.197。2.198。……….。2.210 | 14 |
| SA-23 | 2.297。2.298。……….。2.310 | 14 |
| SA-24 | 2.397。2.398。……….。2.410 | 14 |
| SA-25 | 2.497。2.498。……….。2.510 | 14 |
| SA-26 | 2.597。2.598。……….。2.610 | 14 |
| SA-27 | 2.697。2.698。……….。2.710 | 14 |
| SA-28 | 2.797。2.798。……….。2.810 | 14 |
| SA-29 | 2.897。2.898。……….。2.910 | 14 |
| SA-30 | 2.997。2.998。……….。3.010 | 14 |
| SA-31 | 3.097。3.098。……….。3.110 | 14 |
| SA-32 | 3.197。3.198。……….。3.210 | 14 |
| SA-33 | 3.297。3.298。……….。3.310 | 14 |
| SA-34 | 3.397。3.398。……….。3.410 | 14 |
| SA-35 | 3.497。3.498。……….。3.510 | 14 |
| SA-36 | 3.597。3.598。……….。3.610 | 14 |
| SA-37 | 3.697。3.698。……….。3.710 | 14 |
| SA-38 | 3.797。3.798。……….。3.810 | 14 |
| SA-39 | 3.897。3.898。……….。3.910 | 14 |
| SA-40 | 3.997。3.998。……….。4.010 | 14 |
| SA-41 | 4.097。4.098。……….。4.110 | 14 |
| SA-42 | 4.197。4.198。……….。4.210 | 14 |
| SA-43 | 4.297。4.298。……….。4.310 | 14 |
| SA-44 | 4.397。4.398。……….。4.410 | 14 |
| SA-45 | 4.497。4.498。……….。4.510 | 14 |
| SA-46 | 4.597。4.598。……….。4.610 | 14 |
| SA-47 | 4.697。4.698。……….。4.710 | 14 |
| SA-48 | 4.797。4.798。……….。4.810 | 14 |
| SA-49 | 4.897。4.898。……….。4.910 | 14 |
| SA-50
SA-51 SA- |
4.997。4.998。……….。5.010 | 14 |
| SA-51 | 5.097。5.098。……….。5.110 | 14 |
| SA-52 | 5.197。5.198。……….。5.210 | 14 |
| SA-53 | 5.297。5.298。……….。5.310 | 14 |
| SA-54 | 5.397。5.398。……….。5.410 | 14 |
| SA-55 | 5.497。5.498。……….。5.510 | 14 |
| SA-56 | 5.597。5.598。……….。5.610 | 14 |
| SA-57 | 5.697。5.698。……….。5.710 | 14 |
| SA-58 | 5.797。5.798。……….。5.810 | 14 |
| SA-59 | 5.897。5.898。……….。5.910 | 14 |
| SA-60 | 5.997。5.998。……….。6.010 | 14 |
| SA-61 | 6.097。6.098。……….。6.110 | 14 |
| SA-62 | 6.197。6.198。……….。6.210 | 14 |
| SA-63 | 6.297。6.298。……….。6.310 | 14 |
| SA-64 | 6.397。6.398。……….。6.410 | 14 |
| SA-65 | 6.497。4.498。……….。6.510 | 14 |
| SA-66 | 6.597。6.598。……….。6.610 | 14 |
| SA-67 | 6.697。6.698。……….。6.710 | 14 |
| SA-68 | 6.797。4.798。……….。6.810 | 14 |
| SA-69 | 6.897。6.898。……….。6.910 | 14 |
| SA-70 | 6.997。6.998。……….。7.010 | 14 |
