Product Description
| 型 號 | 最小讀值
mm |
測定範圍
mm |
讀值範圍 |
精 度 µm |
測定壓力
N |
||
| 廣範圍誤差 | 鄰界誤差 | 縱返誤差 | |||||

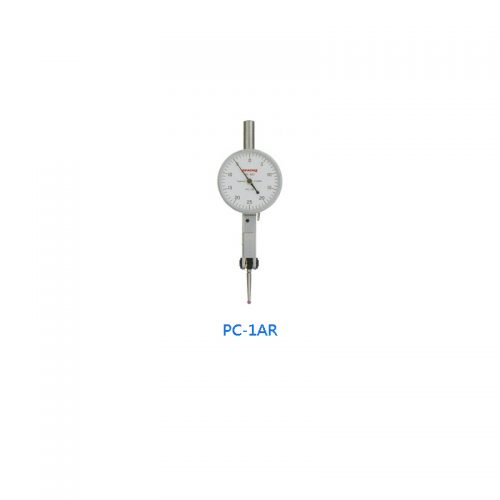

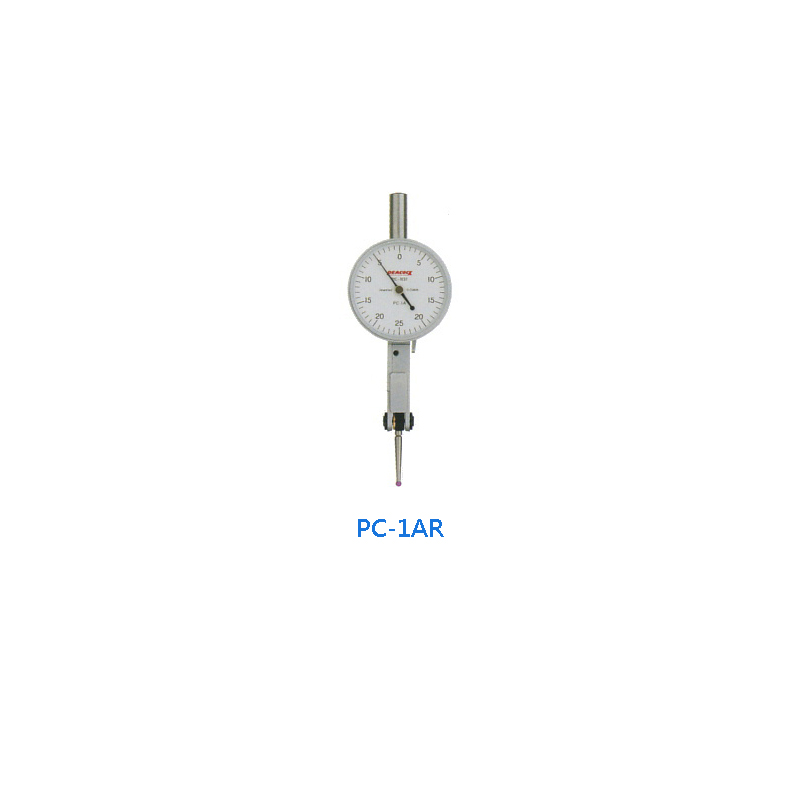

| PC-1AR | 0.01 | 0.5 | 0 – 25 – 0 | 9 | 5 | 3 | 0.4 |

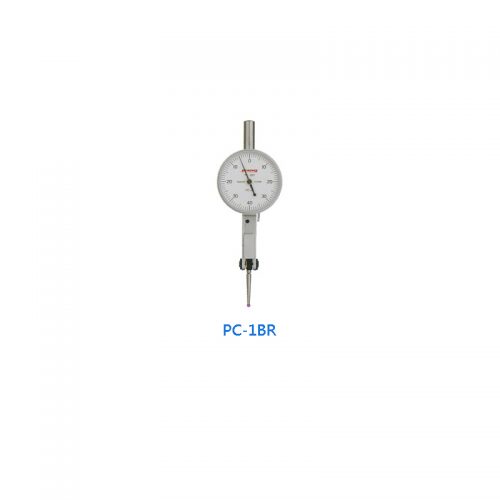

| PC-1BR | 0.01 | 0.8 | 0 – 40 – 0 | 9 | 5 | 3 | |

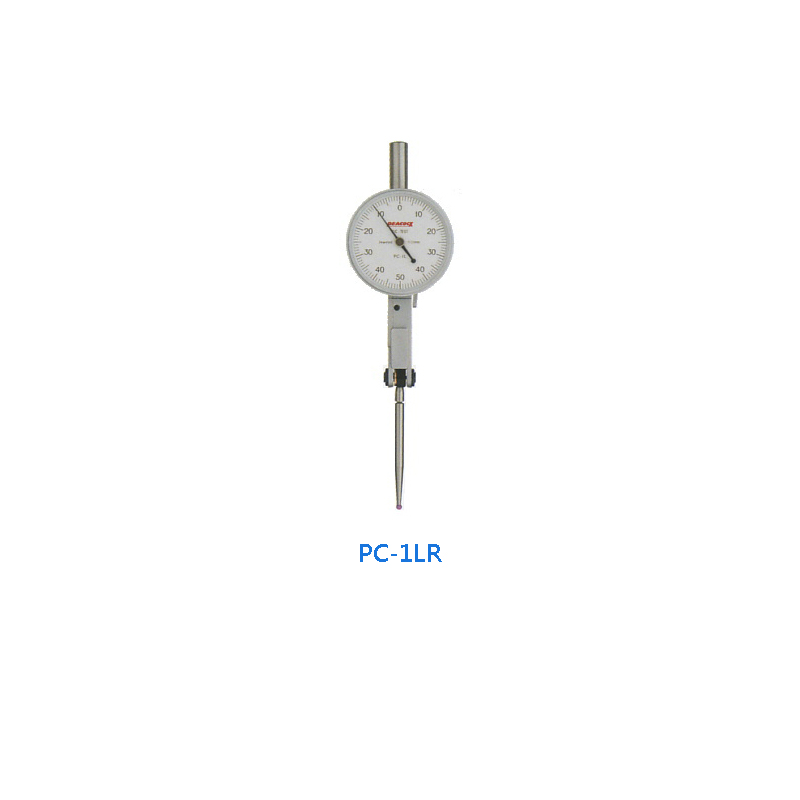

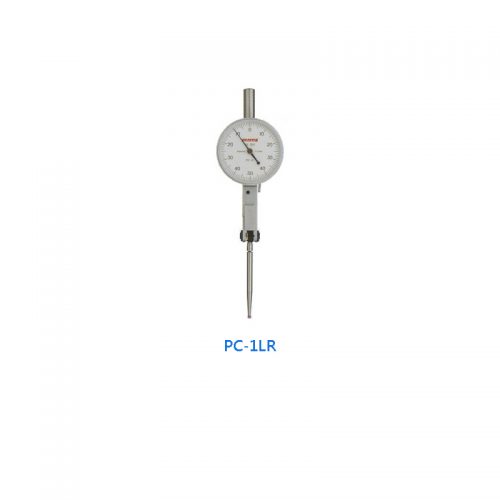

| PC-1LR | 0.01 | 1.0 | 0 – 50 – 0 | 10 | 5 | 3 | |

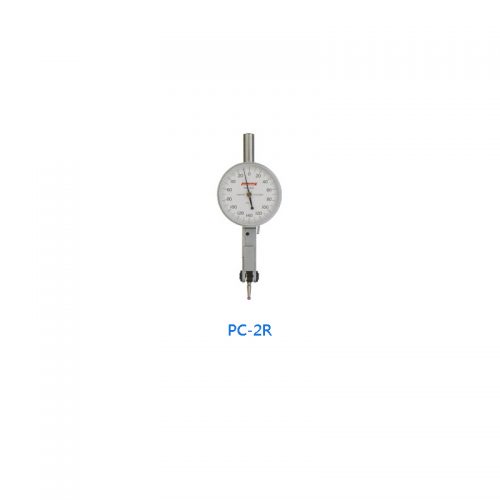

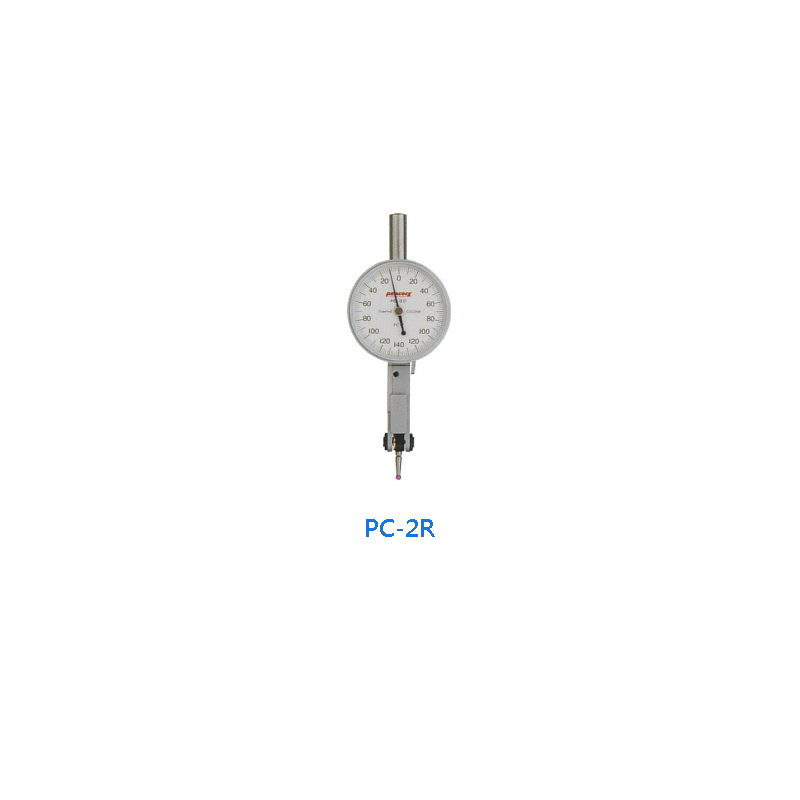

| PC-2R | 0.002 | 0.28 | 0 – 140 – 0 | 4 | 2 | 1 | |

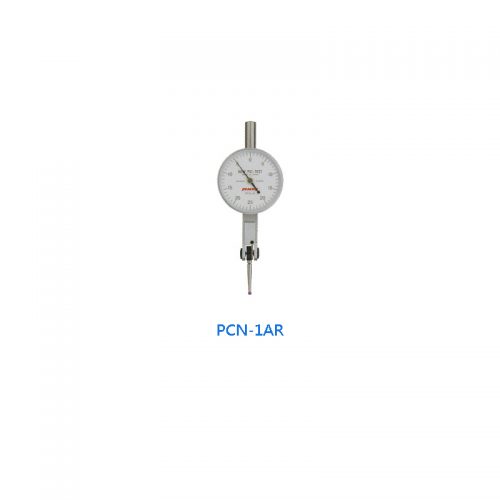

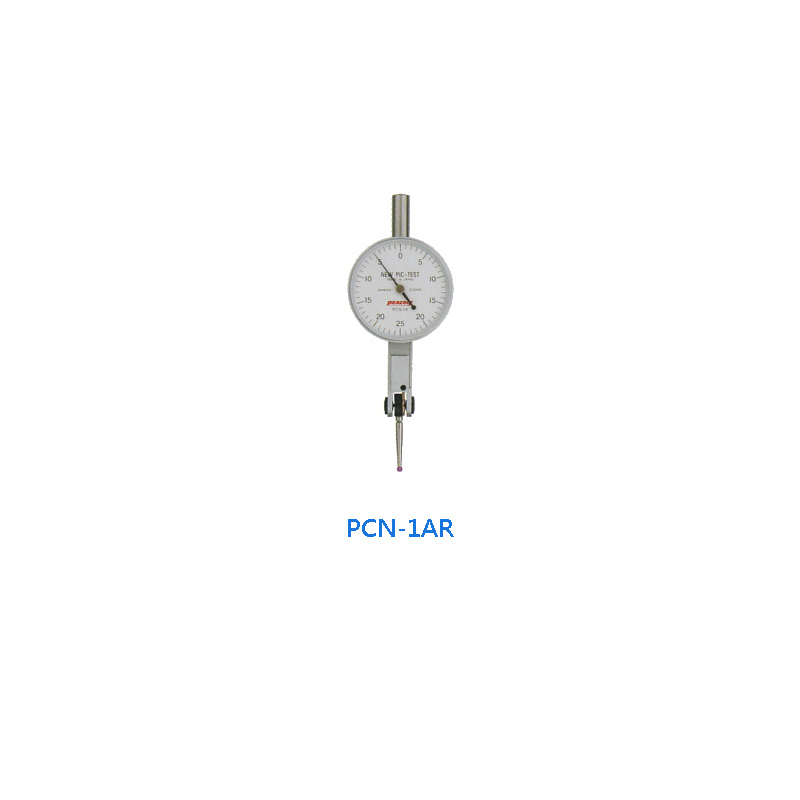

| PCN-1AR | 0.01 | 0.5 | 0 – 25 – 0 | 6 | 5 | 3 | 0.3 |

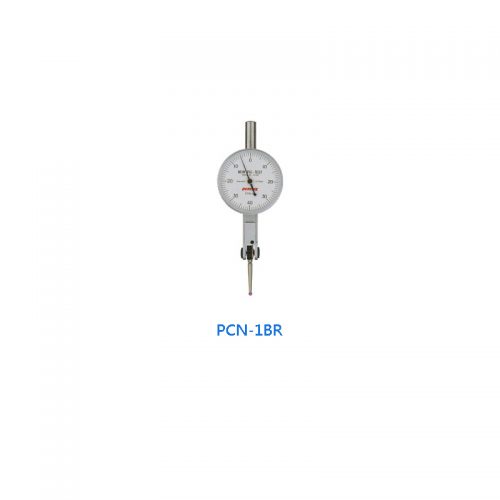

| PCN-1BR | 0.01 | 0.8 | 0 – 40 – 0 | 9 | 5 | 3 | |

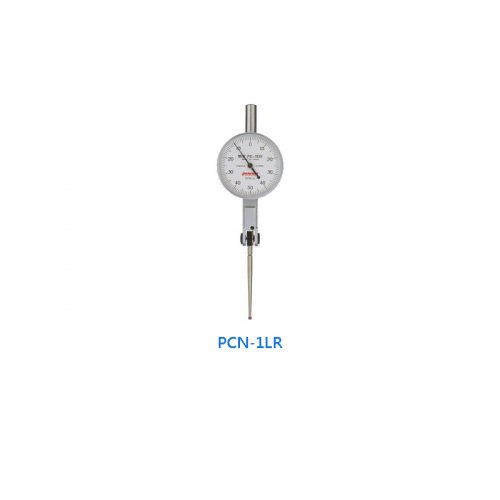

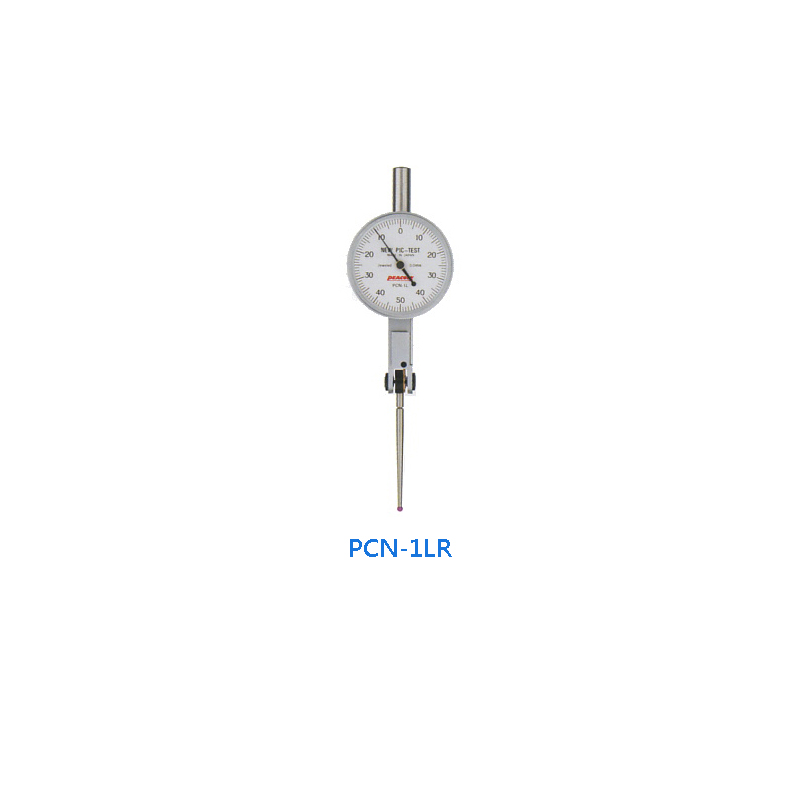

| PCN-1LR | 0.01 | 1.0 | 0 – 50 – 0 | 10 | 5 | 3 | |

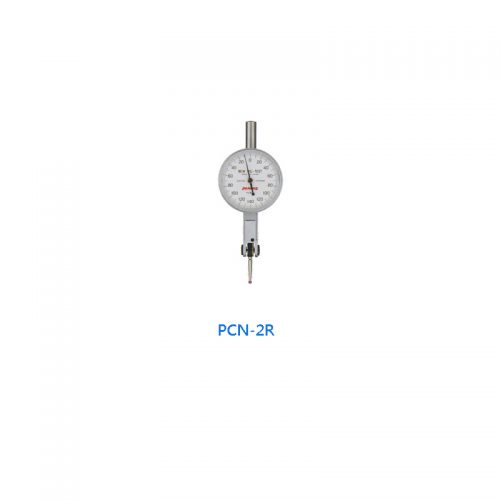

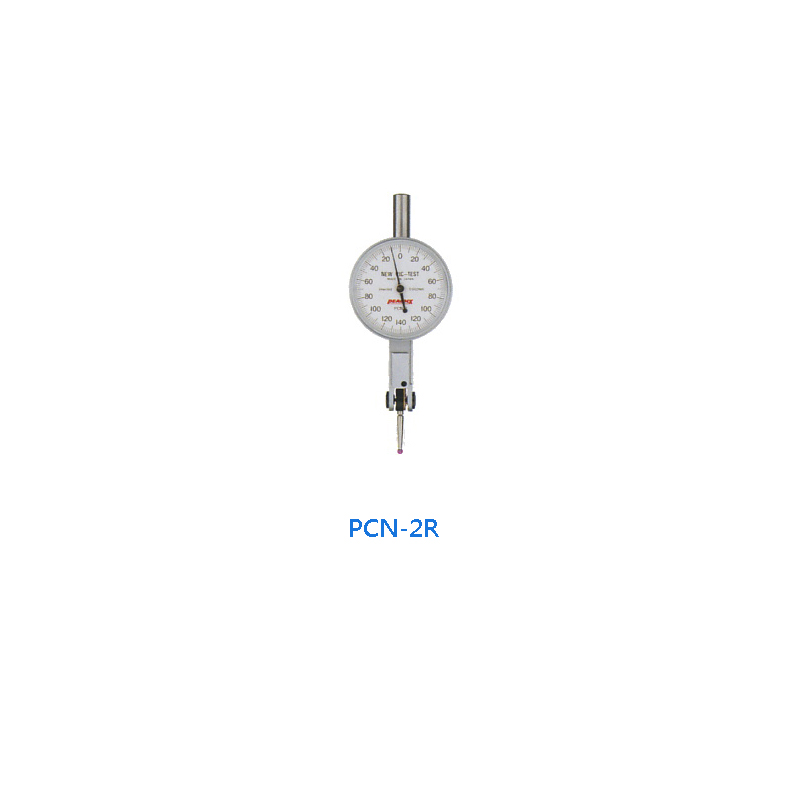

| PCN-2R | 0.002 | 0.28 | 0 – 140 – 0 | 4 | 2 | 1 | |

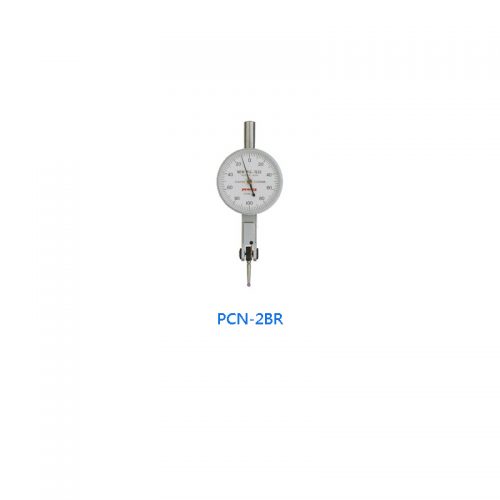

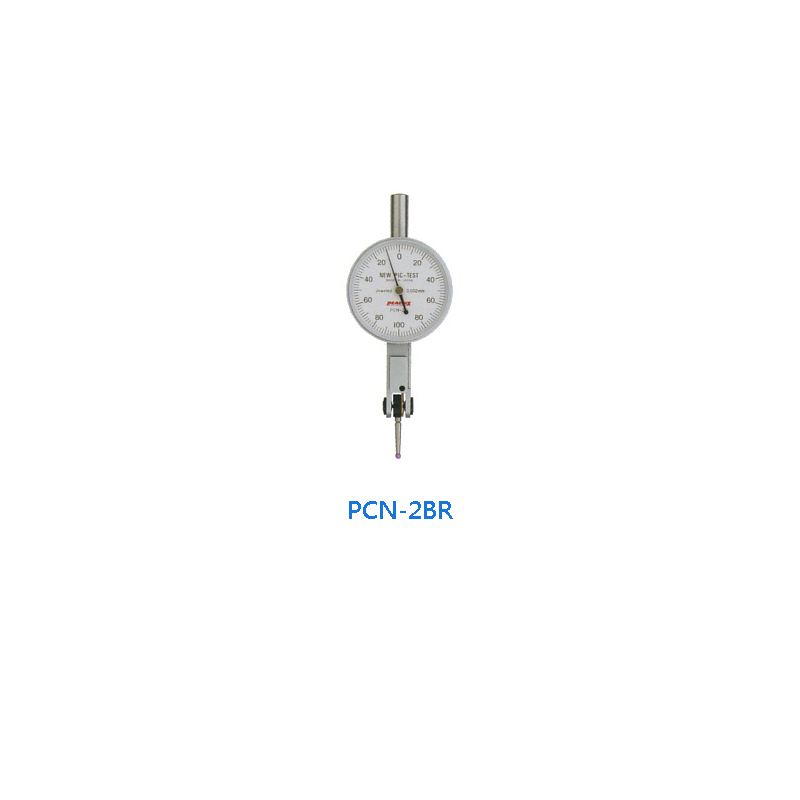

| PCN-2BR | 0.002 | 0.2 | 0 – 100 – 0 | 4 | 2 | 1 | |

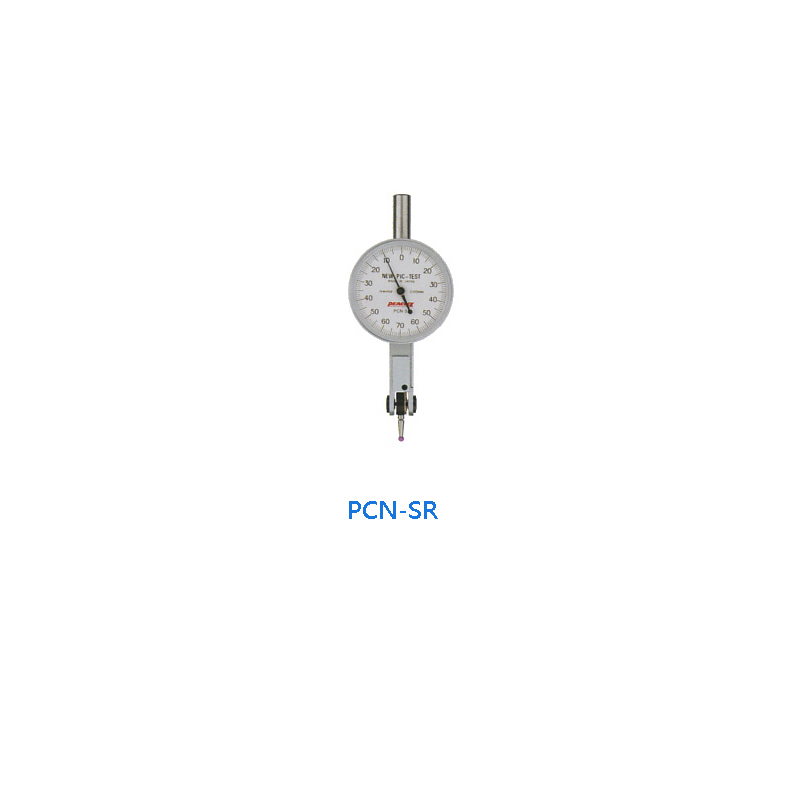

| PCN-SR | 0.001 | 0.14 | 0 – 70 – 0 | 4 | 2 | 1 | |
| PCN-5R | 0.01 | 0.5 | 0 – 25 – 0 | 6 | 5 | 3 | |

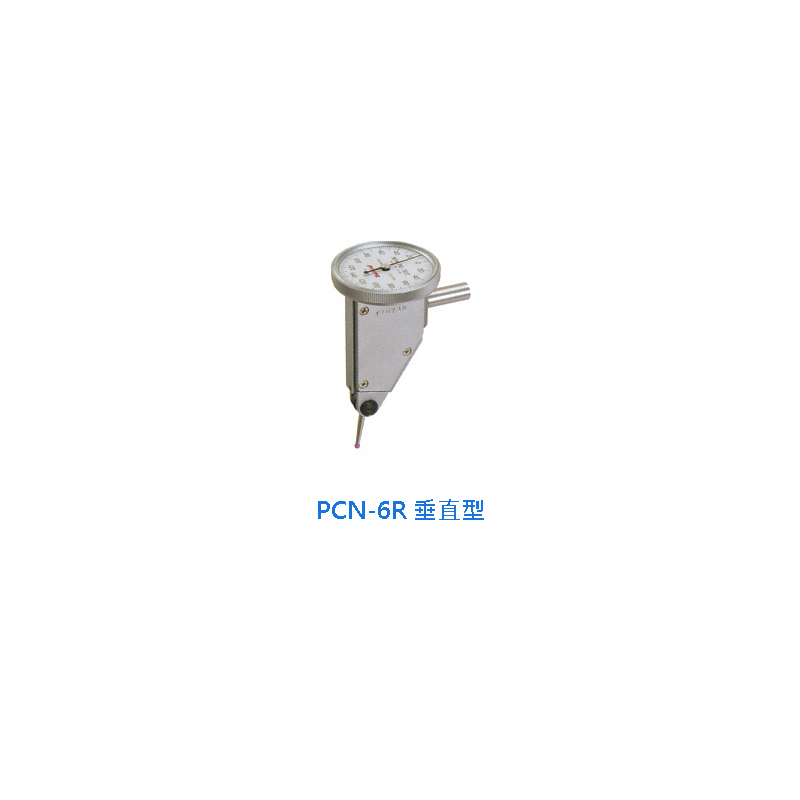

| PCN-6R | 0.002 | 0.28 | 0 – 140 – 0 | 4 | 2 | 1 | |
