Product Description
| 型 號 | 最小
讀值 mm |
測定
範圍 mm |
指示誤差µm | 測定
壓力 N以下 |
外觀尺寸 mm |
適用測頭型號（測頭直徑） |
||||||
| 鄰接
誤差 |
全測定範圍 | 錶面
直徑 |
測頭
長度 |
標準2mm | 紅寶石
２mm |
1mm | 0.8mm | 0.5mm | ||||

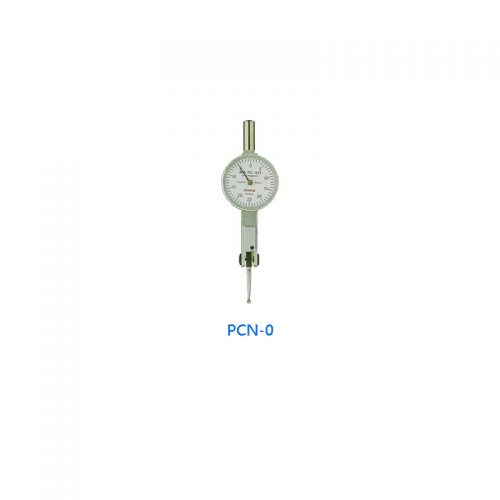

| PCN-0 | 0.01 | 0.5 | 5 | 6 | 0.3 | 29 | 17.74 | XN1A-2 | XN1A-2R | XN1A-1 | XN1A-08 | XN1A-05 |

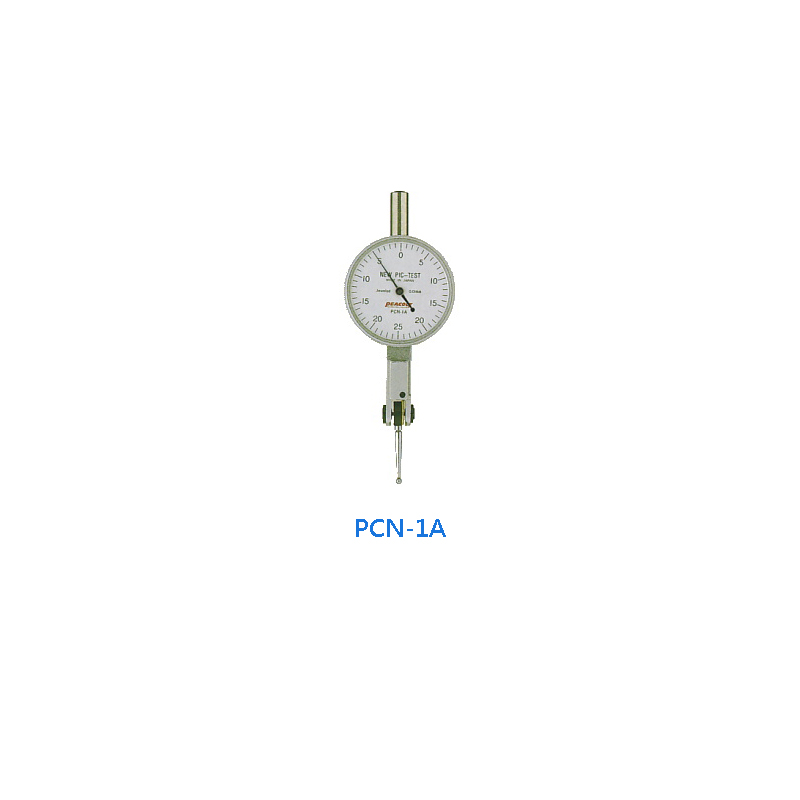

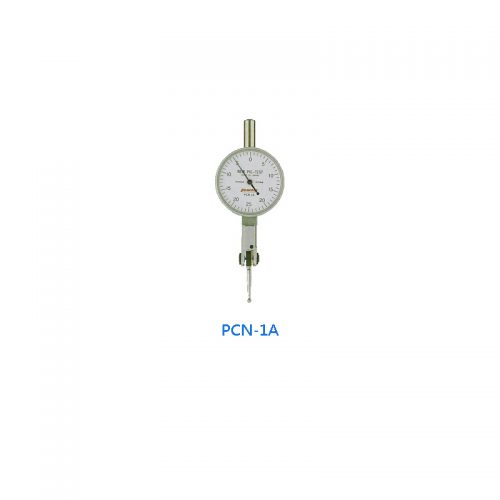

| PCN-1A | 0.01 | 0.5 | 5 | 6 | 35 | 17.74 | XN1A-2 | XN1A-2R | XN1A-1 | XN1A-08 | XN1A-05 | |

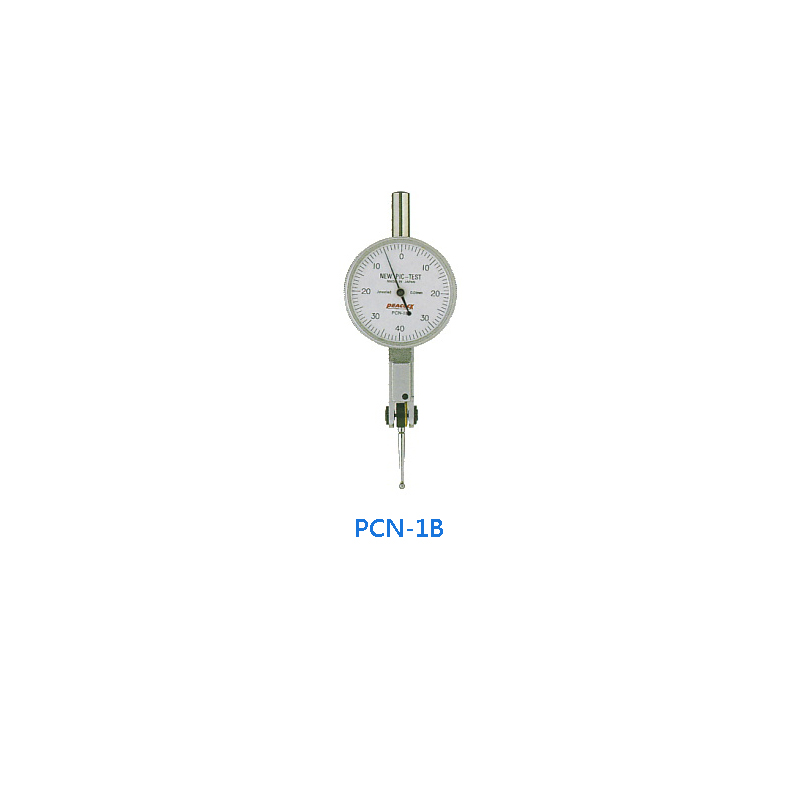

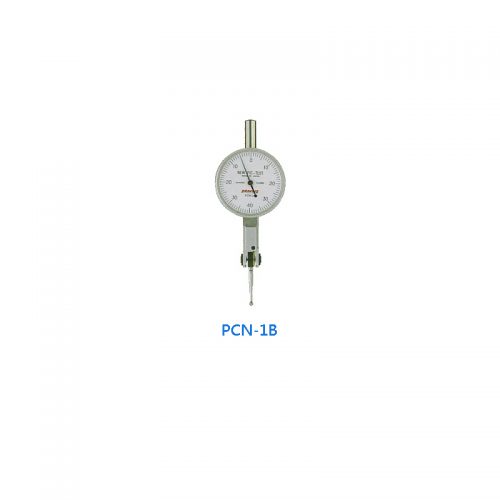

| PCN-1B | 0.01 | 0.8 | 5 | 9 | 35 | 18.63 | XN1B-2 | XN1B-2R | XN1B-1 | XN1B-08 | XN1B-05 | |

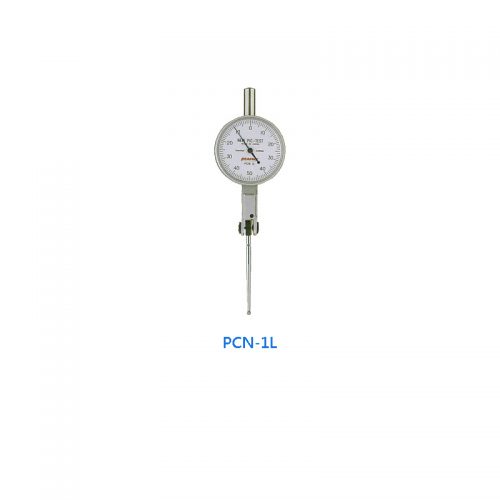

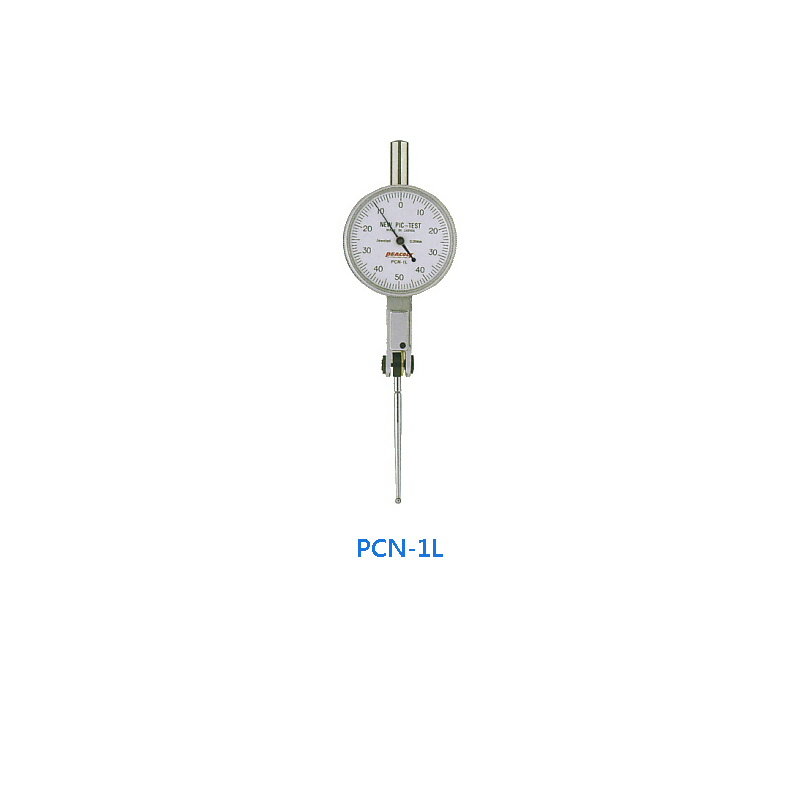

| PCN-1L | 0.01 | 1.0 | 5 | 10 | 35 | 39 | XN1L-2 | XN1L-2R | XN1L- | XN1L-08 | XN1L-05 | |

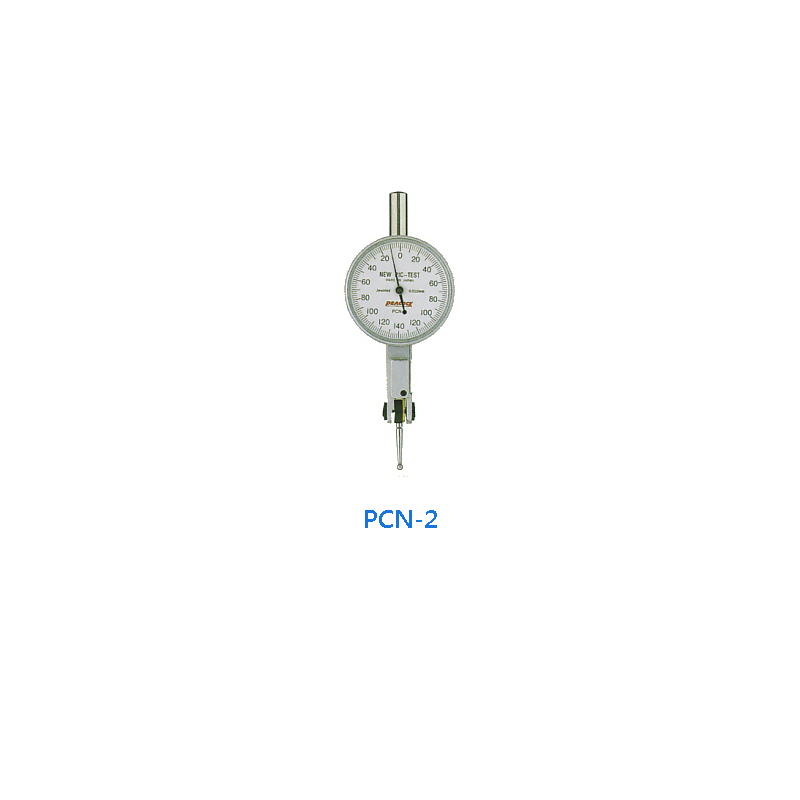

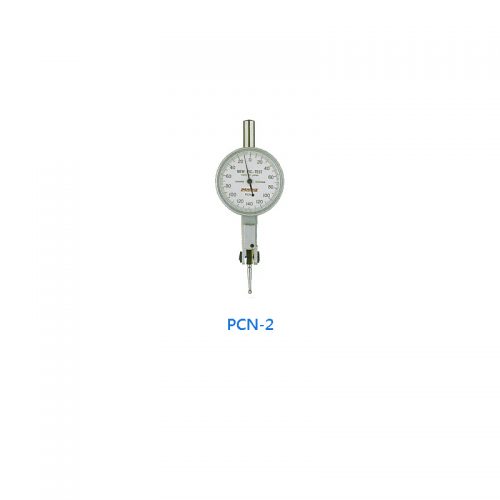

| PCN-2 | 0.002 | 0.28 | 2 | 4 | 35 | 14.18 | XN2-2 | XN2-2R | XN2-1 | XN2-08 | XN2-05 | |

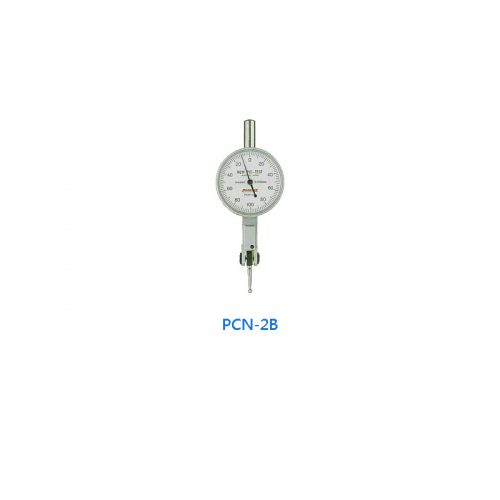

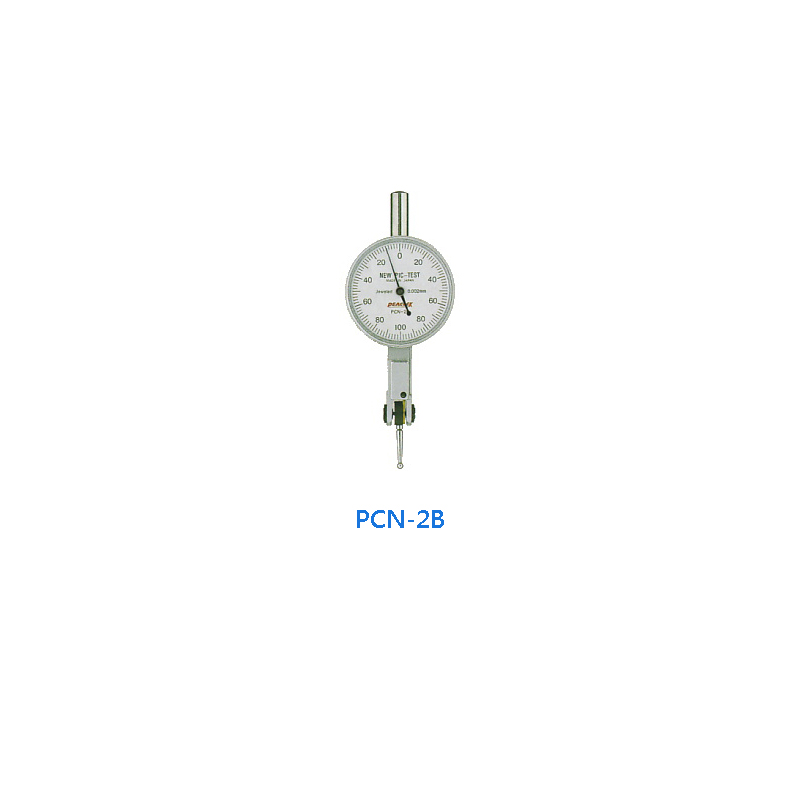

| PCN-2B | 0.002 | 0.2 | 2 | 4 | 35 | 13 | XN2B-2 | XN2B-2R | XN2B-1 | XN2B-08 | XN2B-05 | |

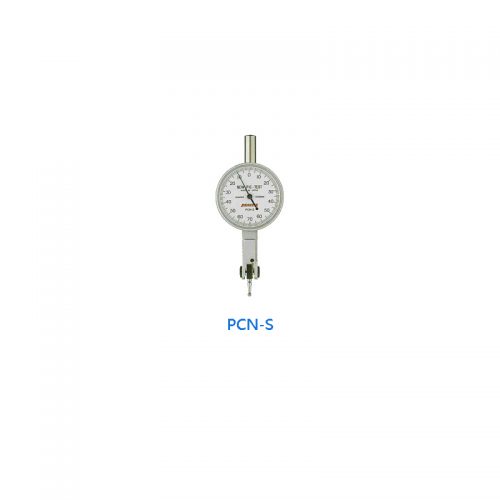

| PCN-S | 0.001 | 0.14 | 2 | 4 | 35 | 8.13 | XNS-2 | XNS-2R | XNS-1 | XNS-08 | XNS-05 | |

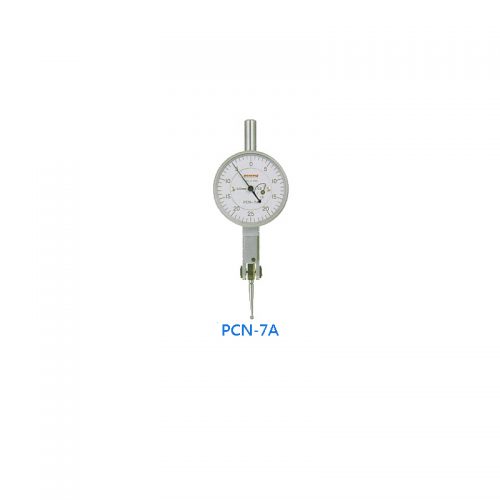

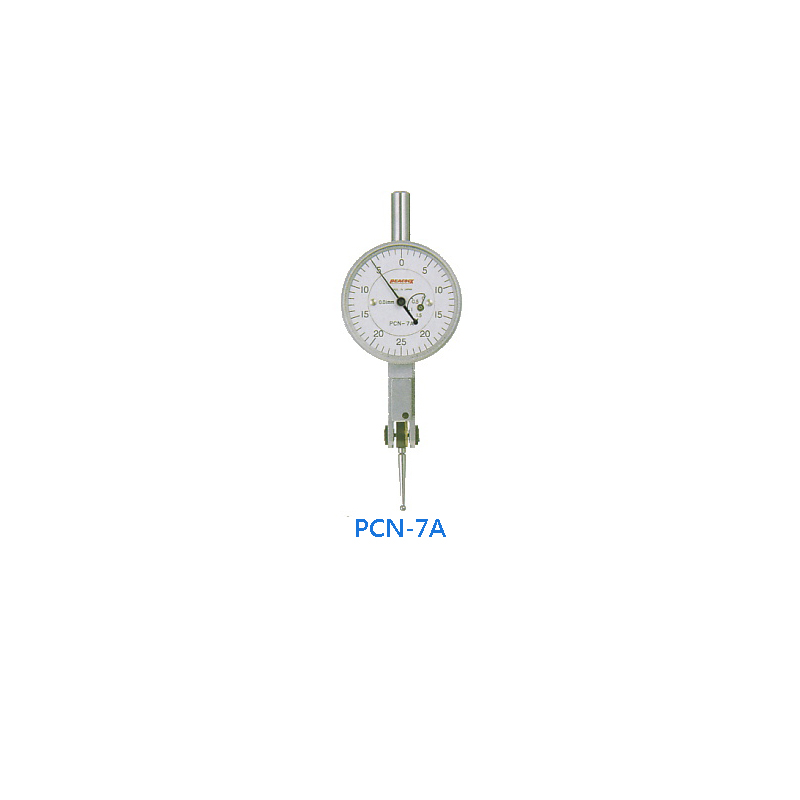

| PCN-7A | 0.01 | 1.5 | 5 | 16 | 35 | 17.74 | XN1A-2 | XN1A-2R | XN1A-1 | XN1A-08 | XN1A-05 | |

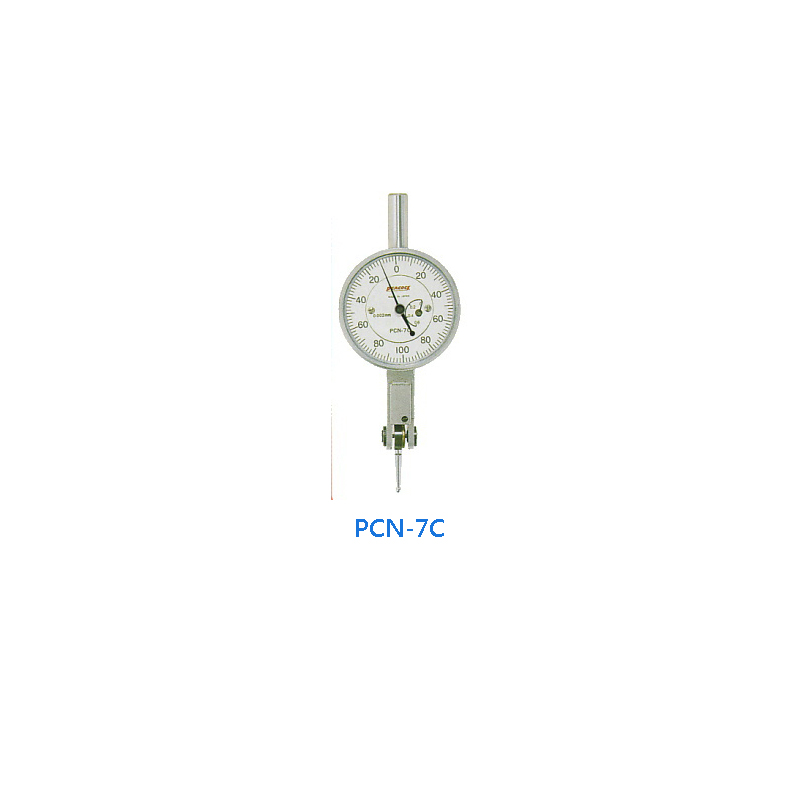

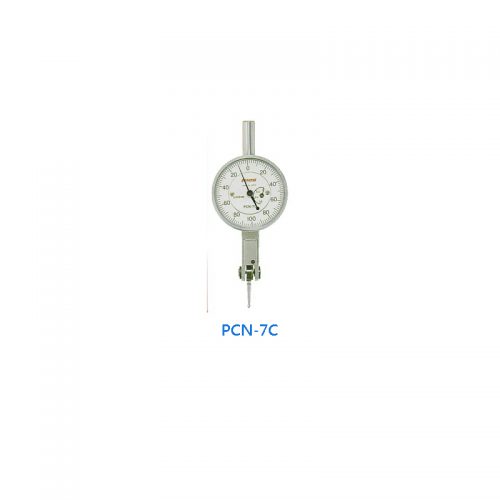

| PCN-7C | 0.002 | 0.6 | 2 | 7 | 35 | 13 | XN1B-2 | XN1B-2R | XN1B-1 | XN1B-08 | XN1B-05 | |

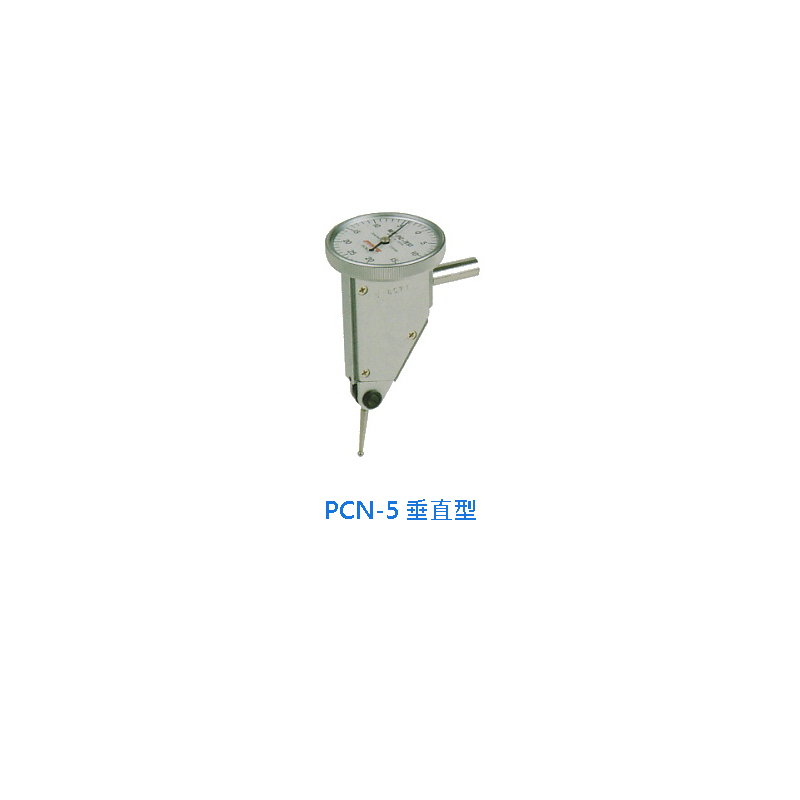

| PCN-5 | 0.01 | 0.5 | 5 | 6 | 35 | 17.74 | XN1A-2 | XN1A-2R | XN1A-1 | XN1A-08 | XN1A-05 | |

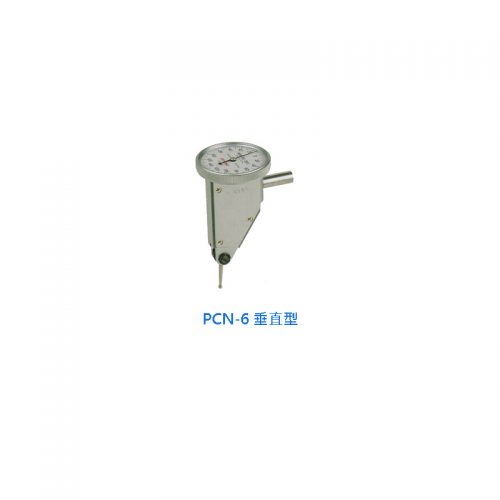

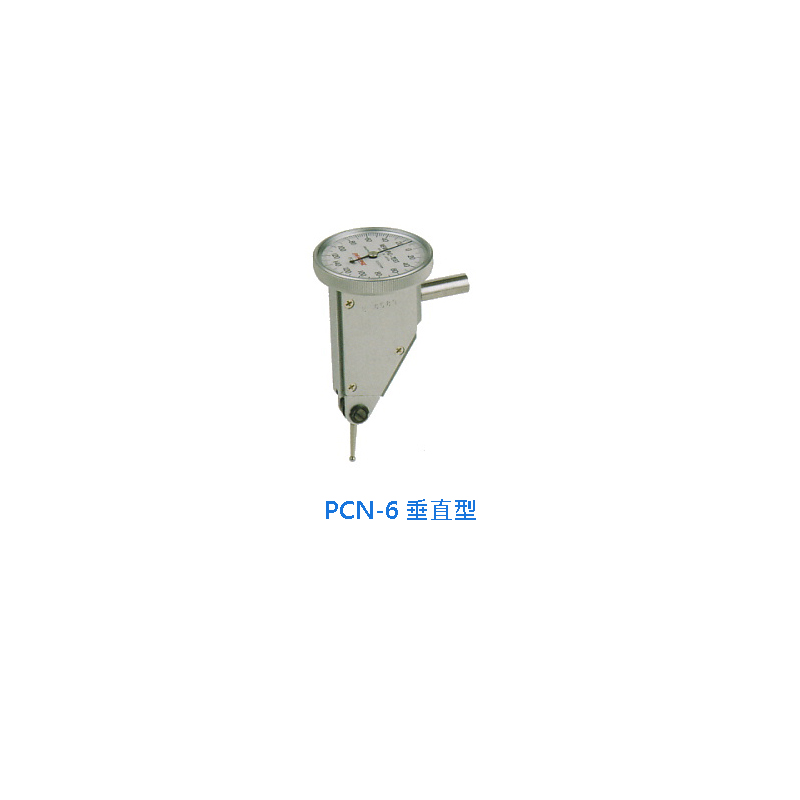

| PCN-6 | 0.002 | 0.28 | 2 | 4 | 35 | 14.18 | XN2-2 | XN2-2R | XN2-1 | XN2-08 | XN2-05 | |
