Product Description
| 型 號 | 最小讀值
mm |
測定範圍
mm |
測定喉深
mm |
指示誤差
mm |

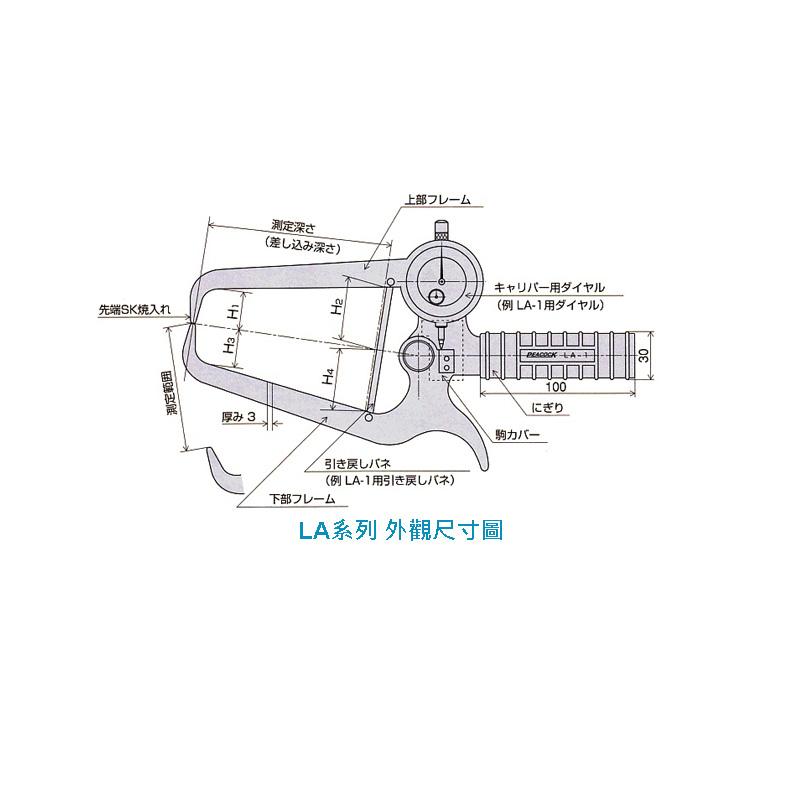

測 量 爪 尺 寸 mm | |||
| H1 | H2 | H3 | H4 | |||||

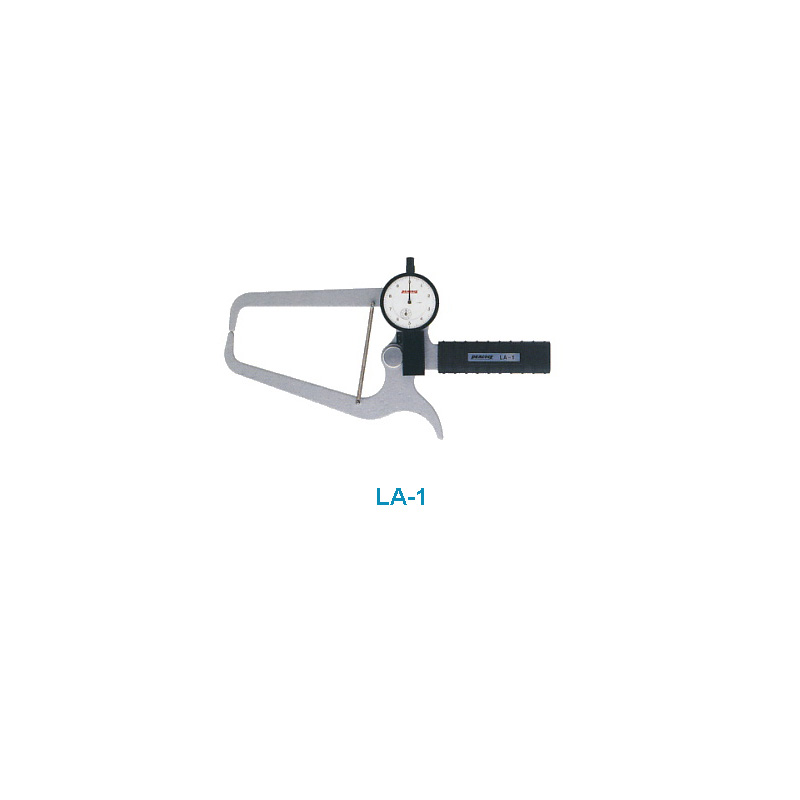

| LA-1 | 0.1 | 0 ~ 80 | 120 | ±0.2 | 25 | 40 | 25 | 40 |

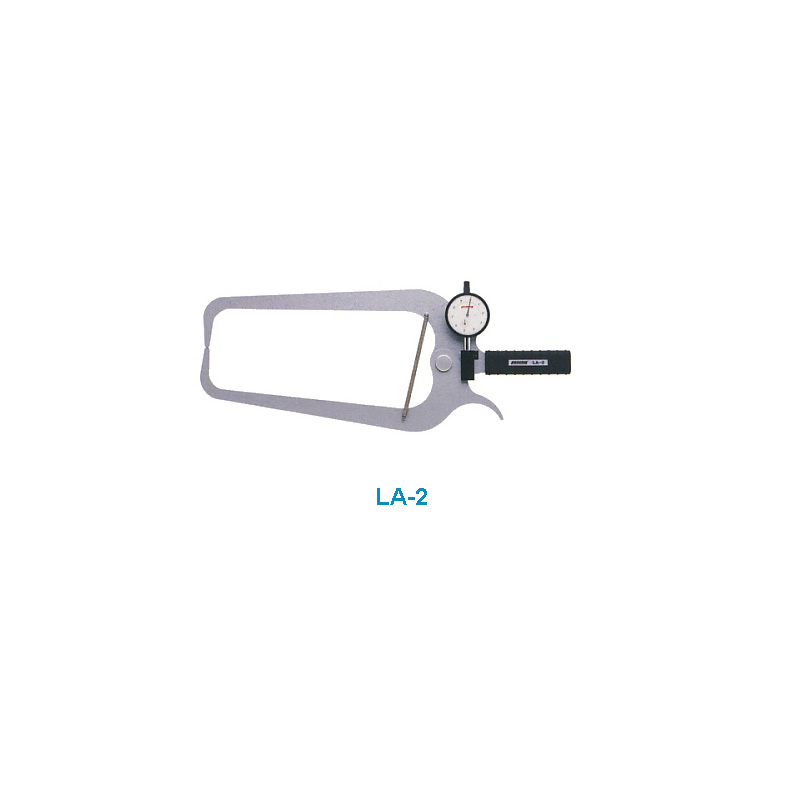

| LA-2 | 0.1 | 0 ~ 80 | 240 | ±0.2 | 48 | 57 | 48 | 57 |

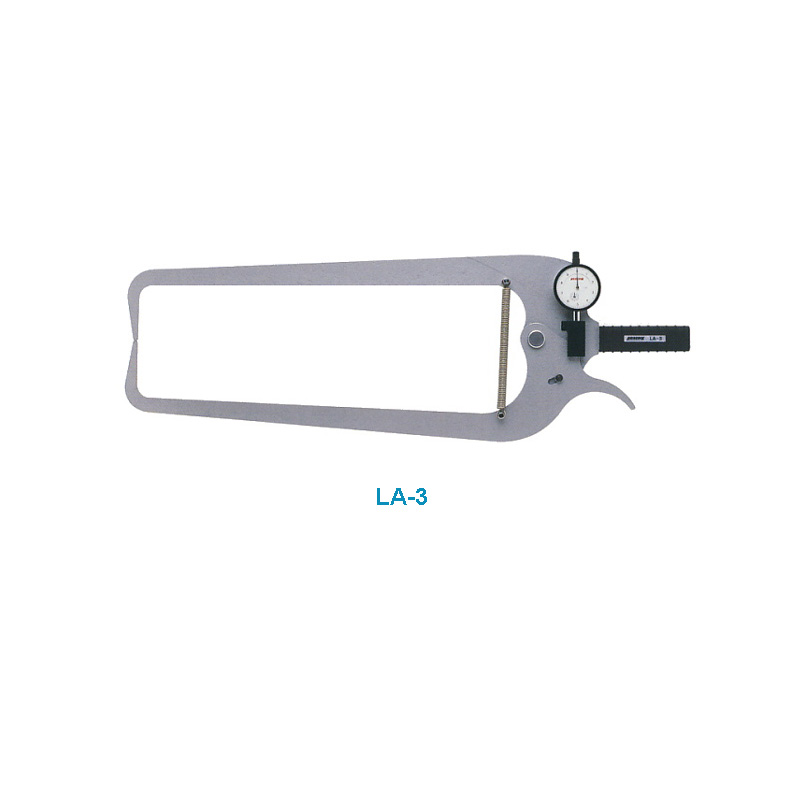

| LA-3 | 0.1 | 0 ~ 80 | 400 | ±0.2 | 60 | 60 | 58 | 79 |

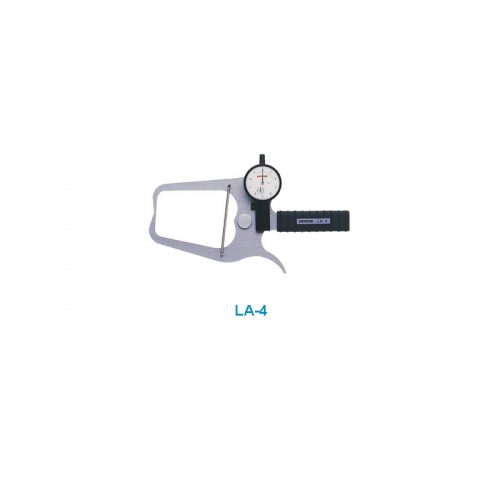

| LA-4 | 0.05 | 0 ~ 50 | 90 | ±0.15 | 30 | 40 | 30 | 40 |

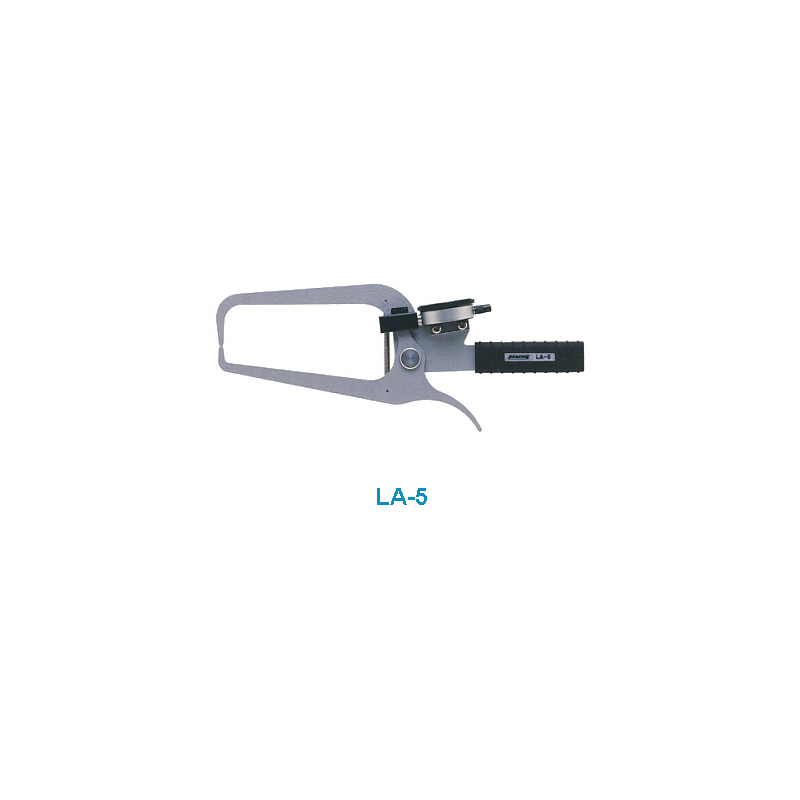

| LA-5 | 0.05 | 0 ~ 50 | 150 | ±0.15 | 38 | 57 | 15 | 21 |

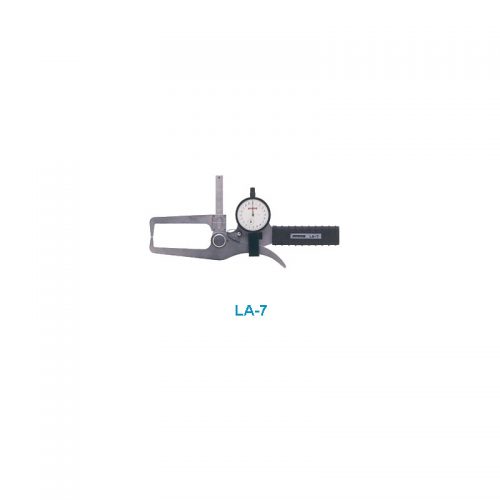

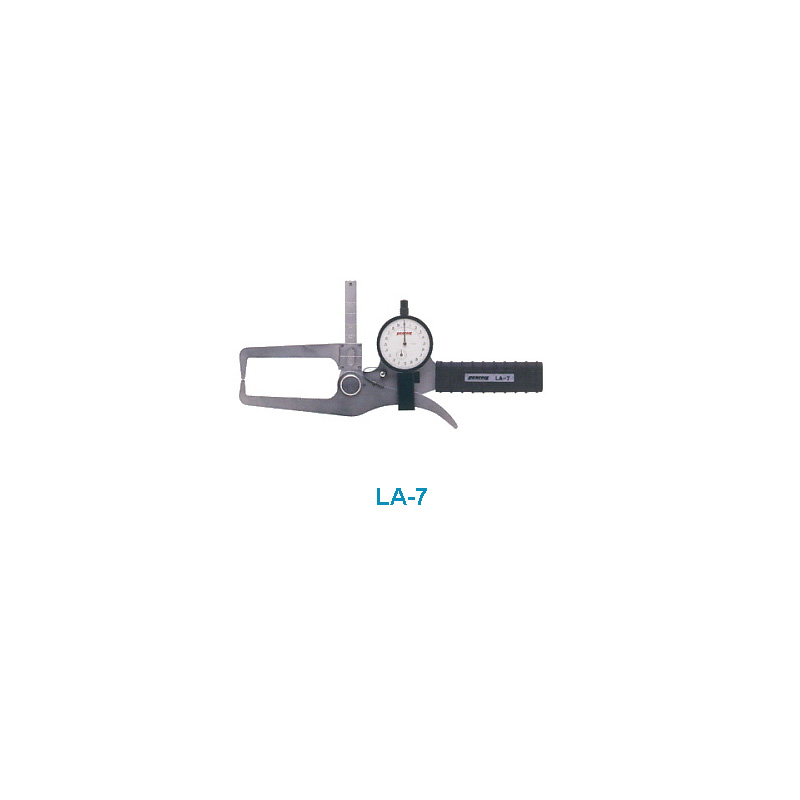

| LA-7 | 0.01 | 0 ~ 60 | 85 | ±0.03 | 20 | 20 | 15 | 15 |

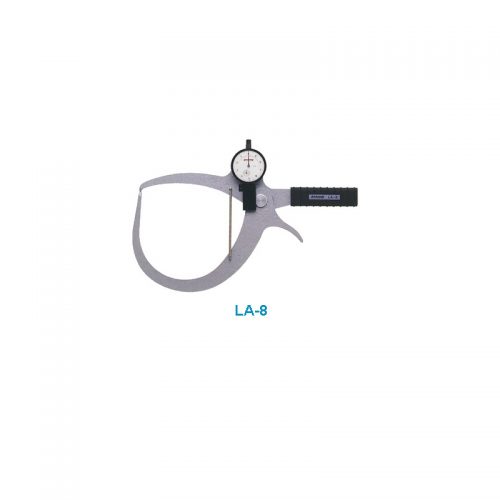

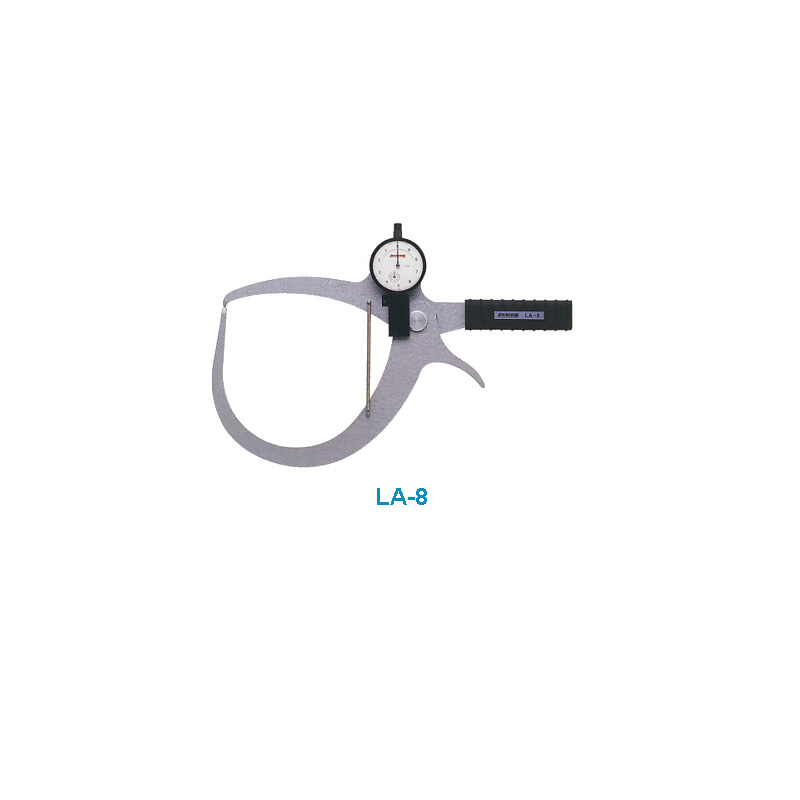

| LA-8 | 0.1 | 0 ~ 80 | 130 | ±0.2 | – | – | – | – |

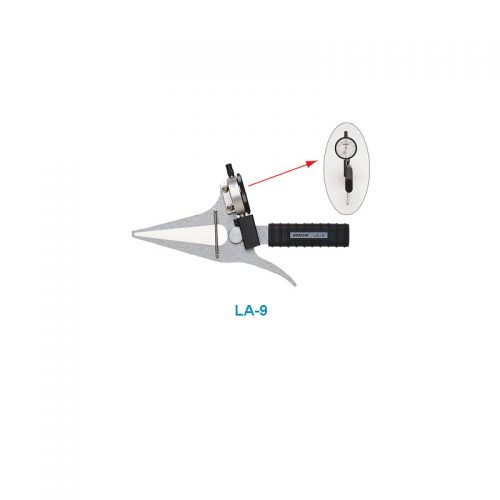

| LA-9 | 0.1 | 0 ~ 30 | 100 | ±0.2 | 2 | 12 | 2 | 12 |

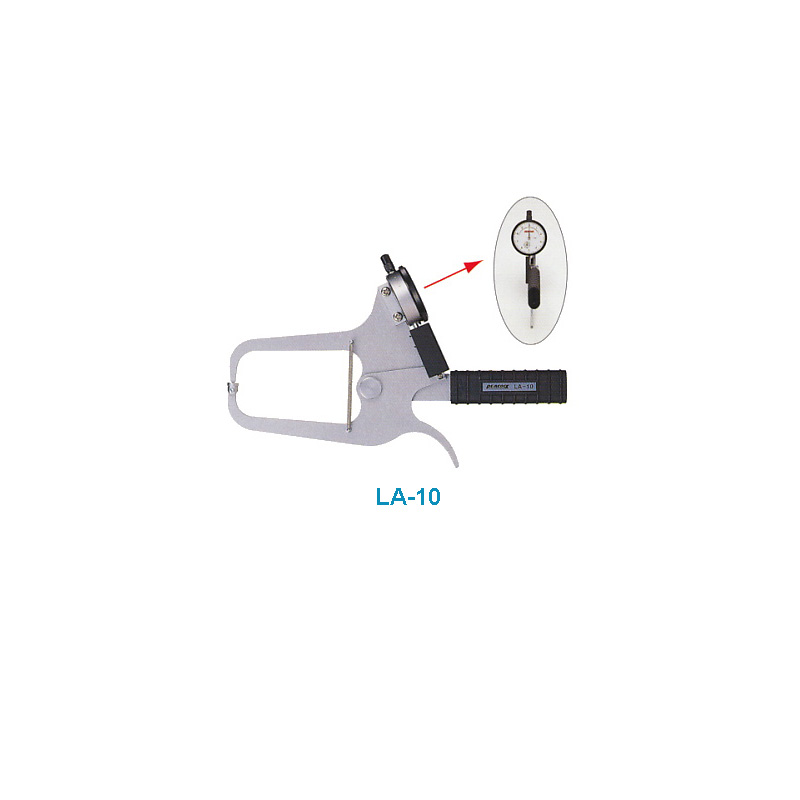

| LA-10 | 0.01 | 0 ~ 20 | 100 | ±0.03 | 28 | 28 | 28 | 28 |
