Product Description
| 型 號 | 測定範圍
mm |
最小讀值
mm |
允許精度
mm |
重複精度
mm |

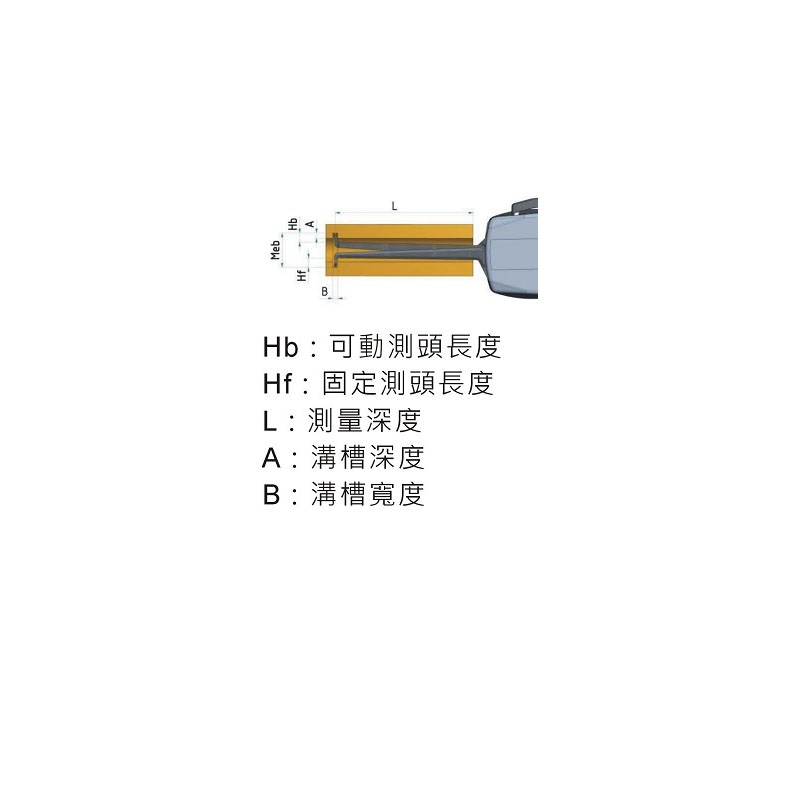

測頭可適用工作尺寸 mm | ||||
| A | B | Hb | Hf | L | |||||

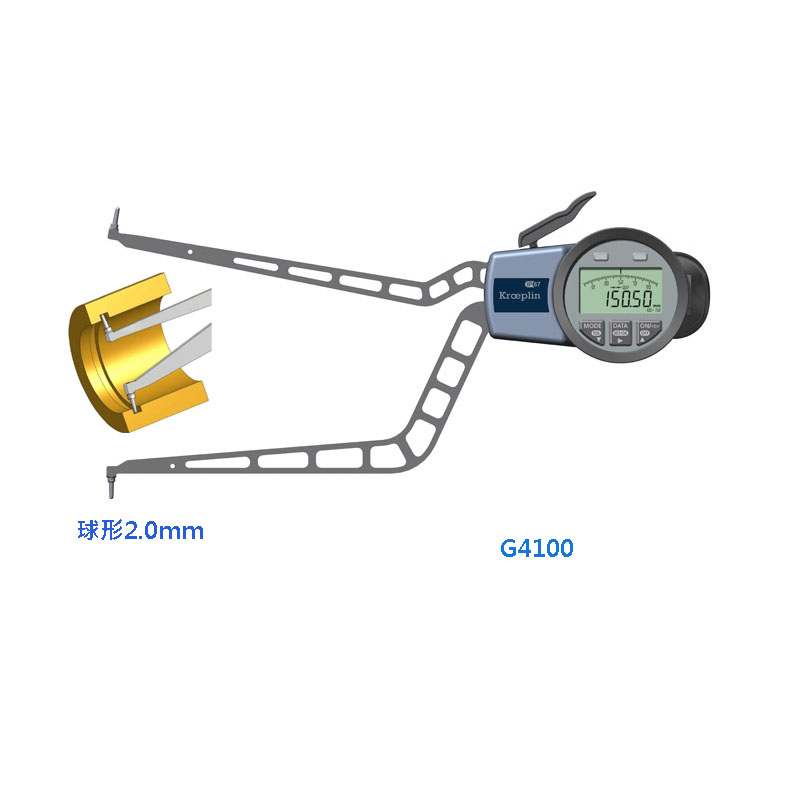

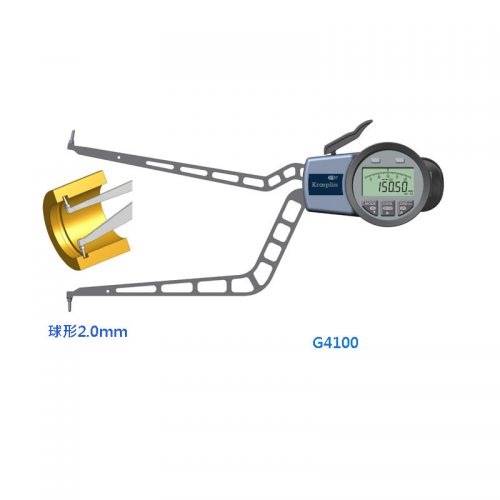

| G4100 | 100 ~ 150 | 0.02 | 0.06 | 0.04 | 8.3 | 2.4 | 8.5 | 8.5 | 192 |

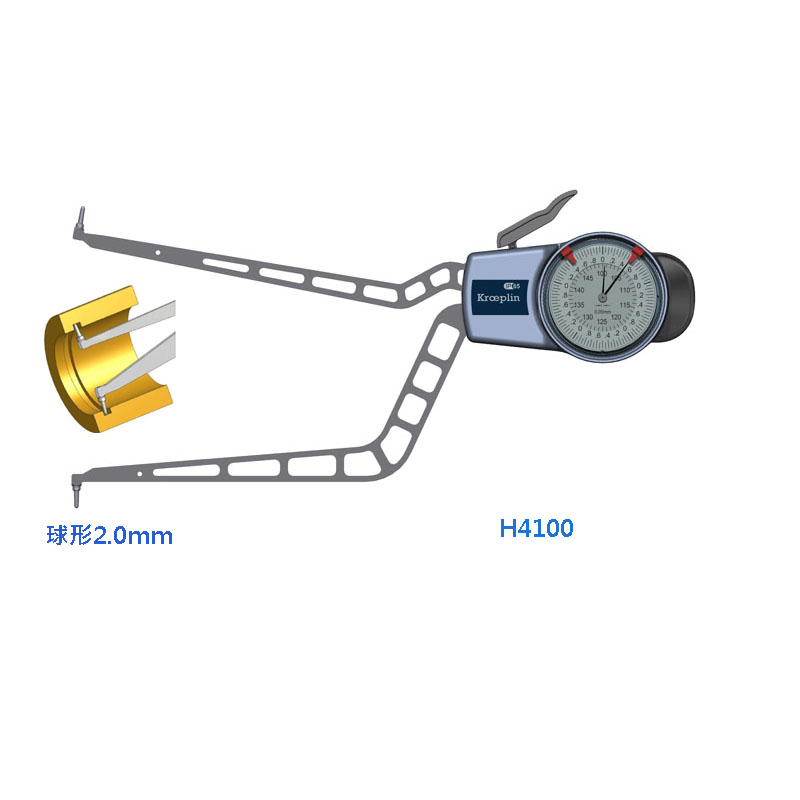

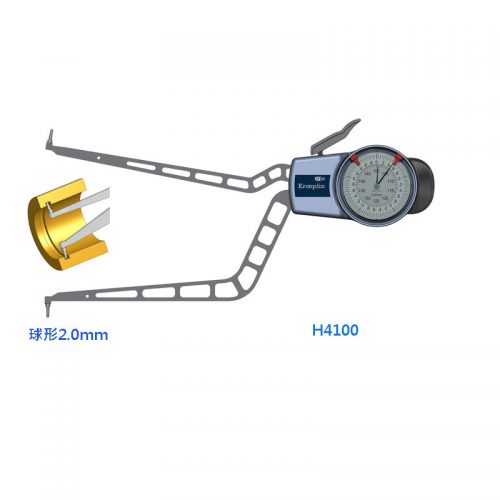

| H4100 | 100 ~ 150 | 0.05 | 0.05 | 0.025 | 8.3 | 2.4 | 8.5 | 8.5 | 192 |

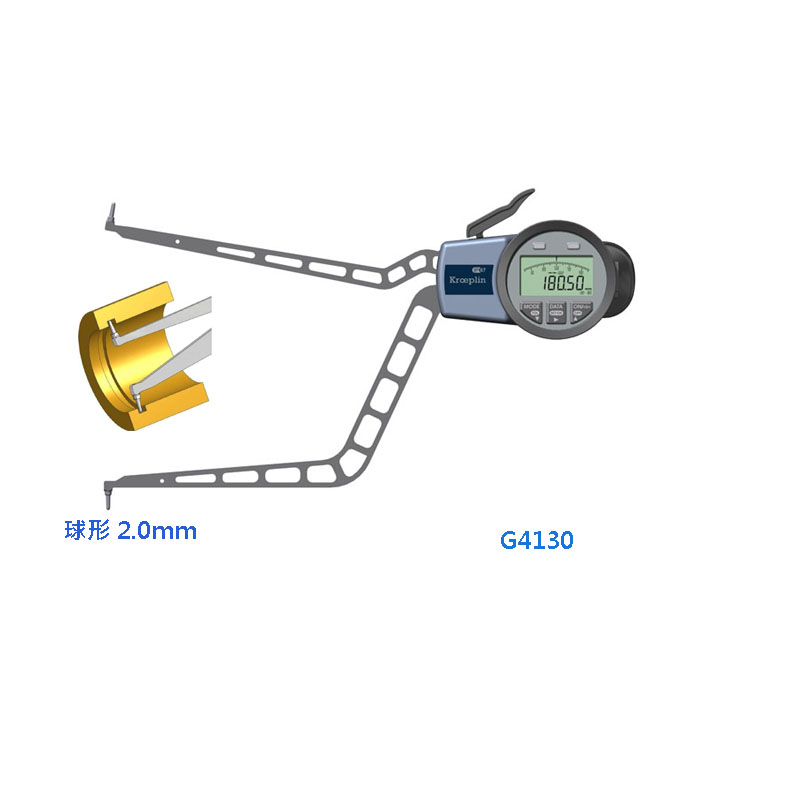

| G4130 | 130 ~ 180 | 0.02 | 0.06 | 0.04 | 8.3 | 2.4 | 8.5 | 8.5 | 192 |

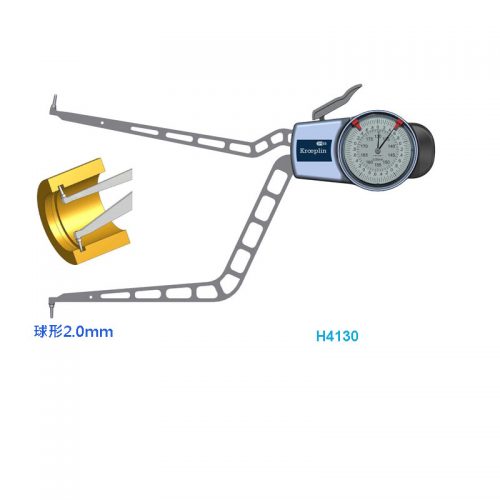

| H4130 | 130 ~ 180 | 0.05 | 0.05 | 0.025 | 8.3 | 2.4 | 8.5 | 8.5 | 192 |

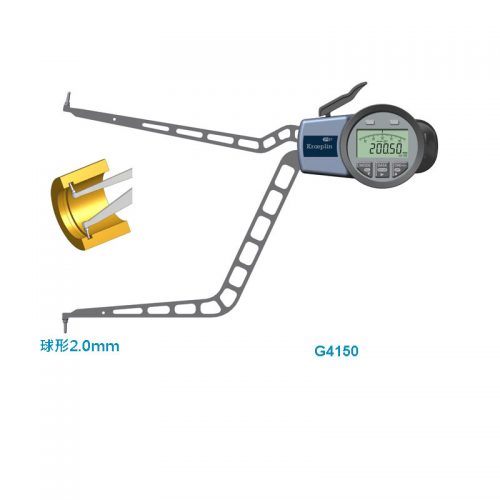

| G4150 | 150 ~ 200 | 0.02 | 0.06 | 0.04 | 8.3 | 2.4 | 8.5 | 8.5 | 192 |

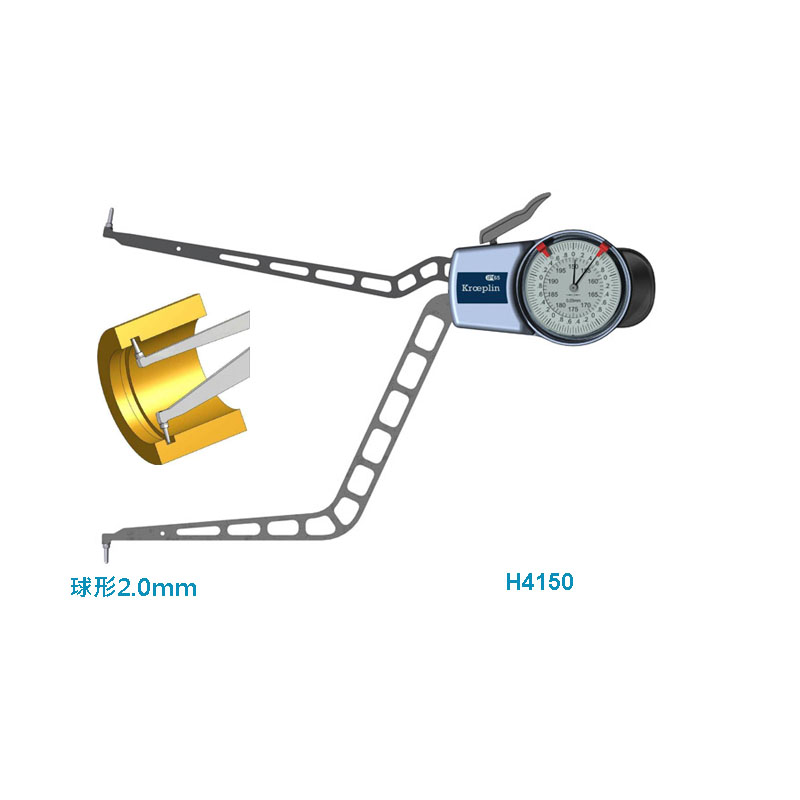

| H4150 | 150 ~ 200 | 0.05 | 0.05 | 0.025 | 8.3 | 2.4 | 8.5 | 8.5 | 192 |

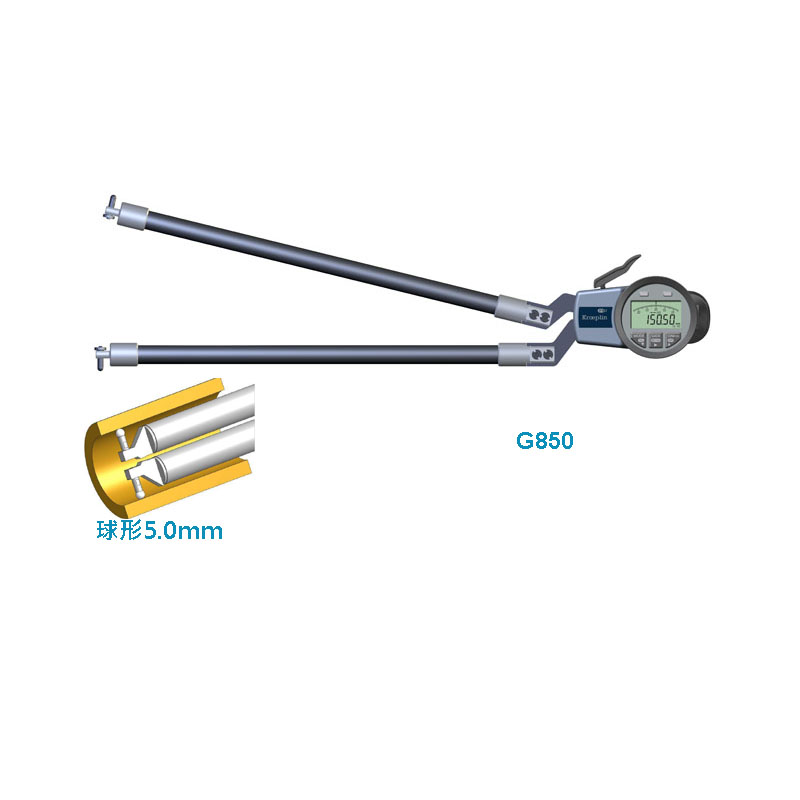

| G850 | 50 ~ 150 | 0.05 | 0.15 | 0.1 | 3.0 | 5.5 | 4.0 | 4.0 | 395 |

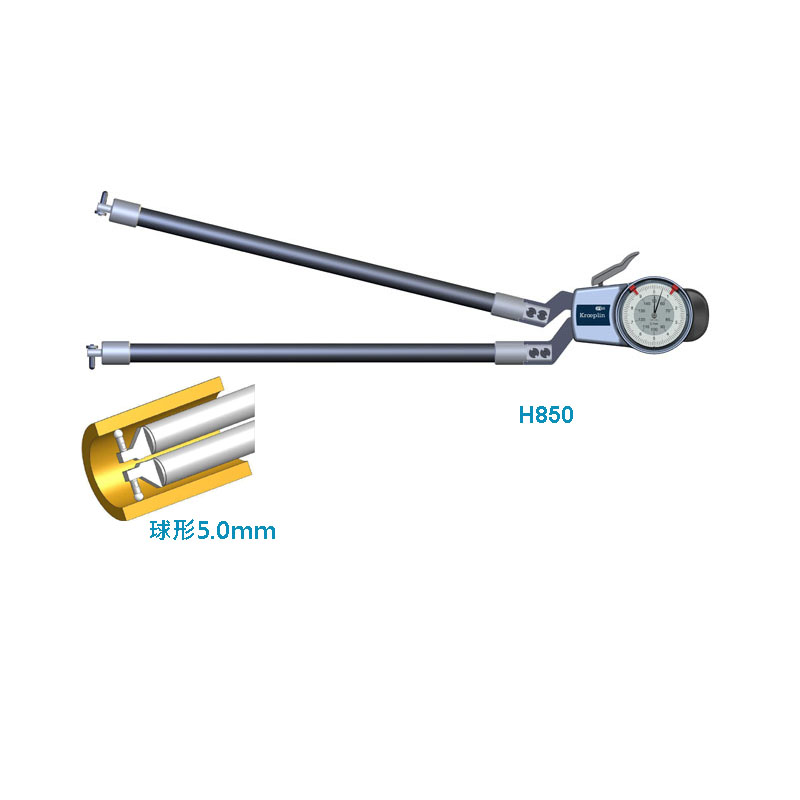

| H850 | 50 ~ 150 | 0.1 | 0.15 | 0.1 | 3.0 | 5.5 | 4.0 | 4.0 | 395 |

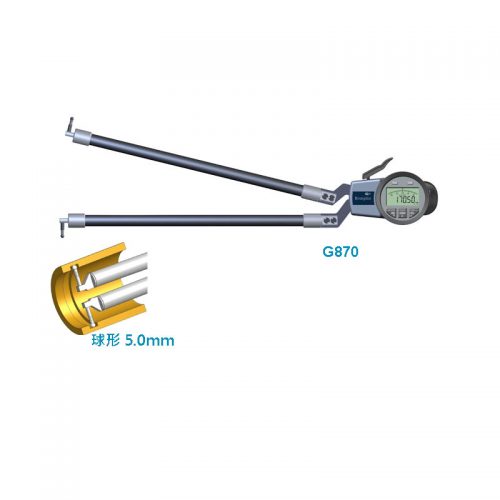

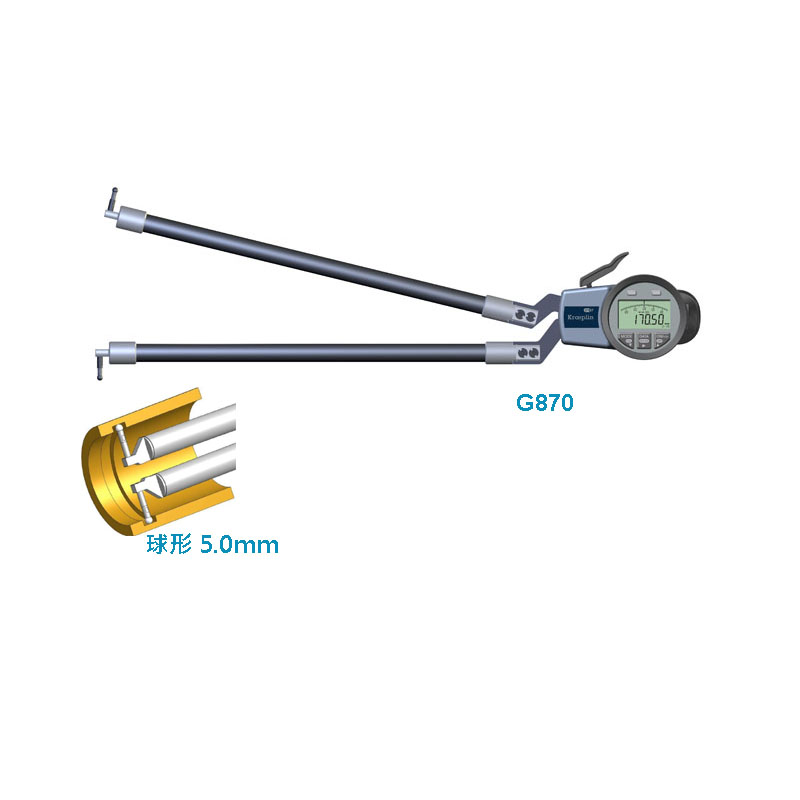

| G870 | 70 ~ 170 | 0.05 | 0.15 | 0.1 | 13.0 | 5.5 | 14.0 | 14.0 | 395 |

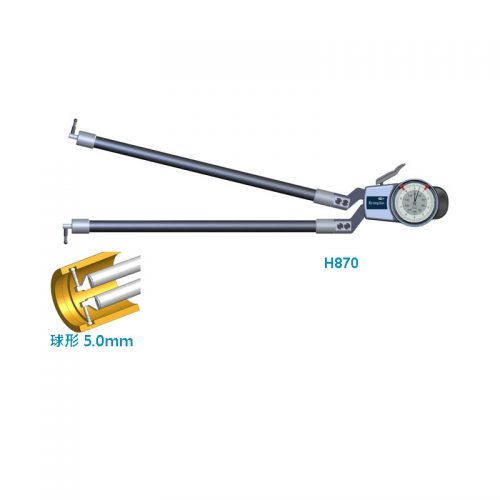

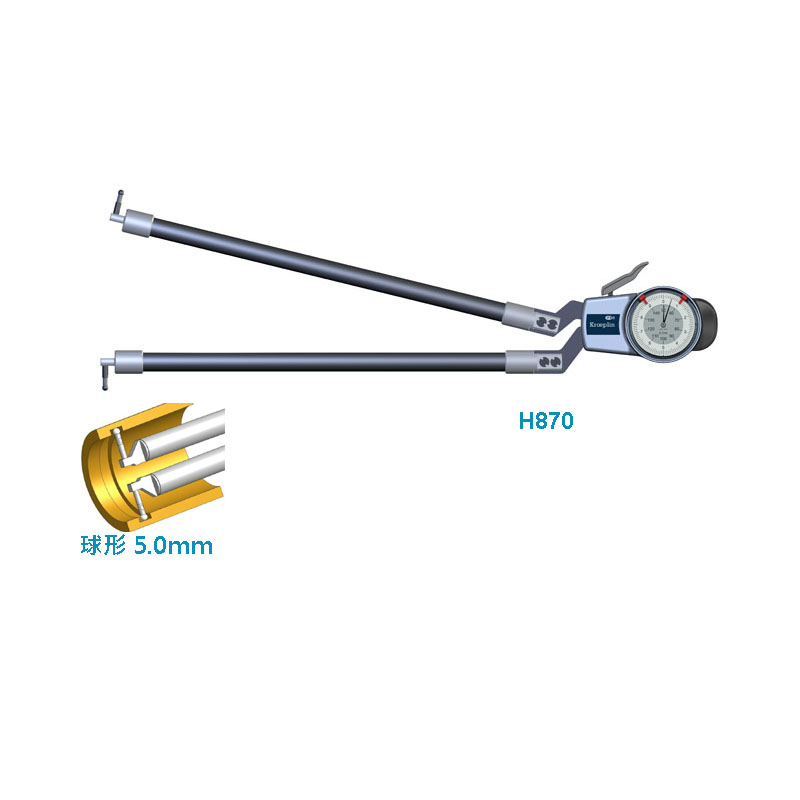

| H870 | 70 ~ 170 | 0.1 | 0.15 | 0.1 | 13.0 | 5.5 | 14.0 | 14.0 | 395 |

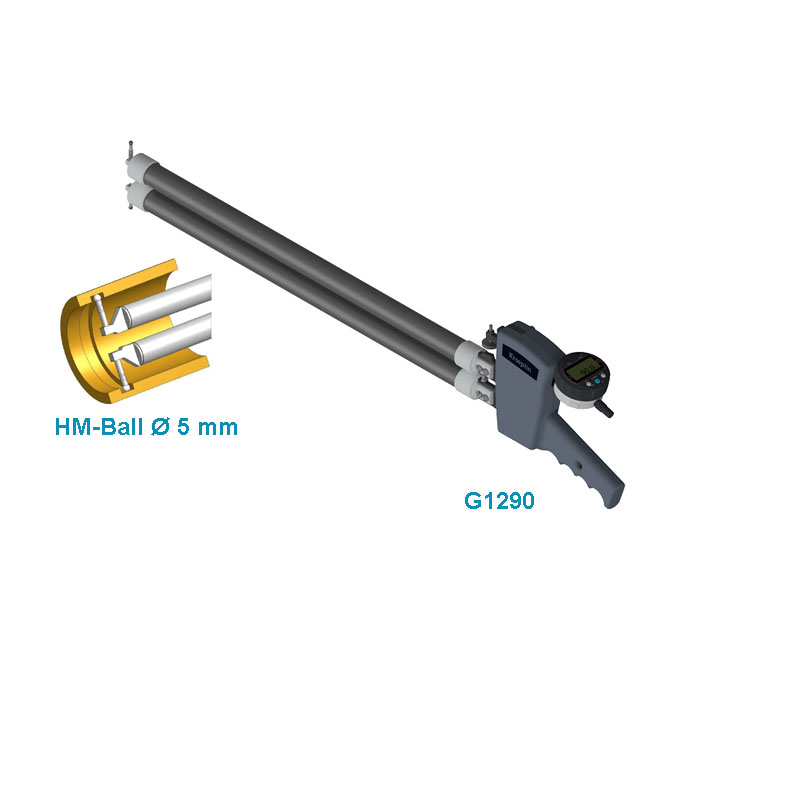

| G1290 | 90 ~ 190 | 0.1 | 0.1 | 0.1 | – | – | 13 | 13 | 566 |

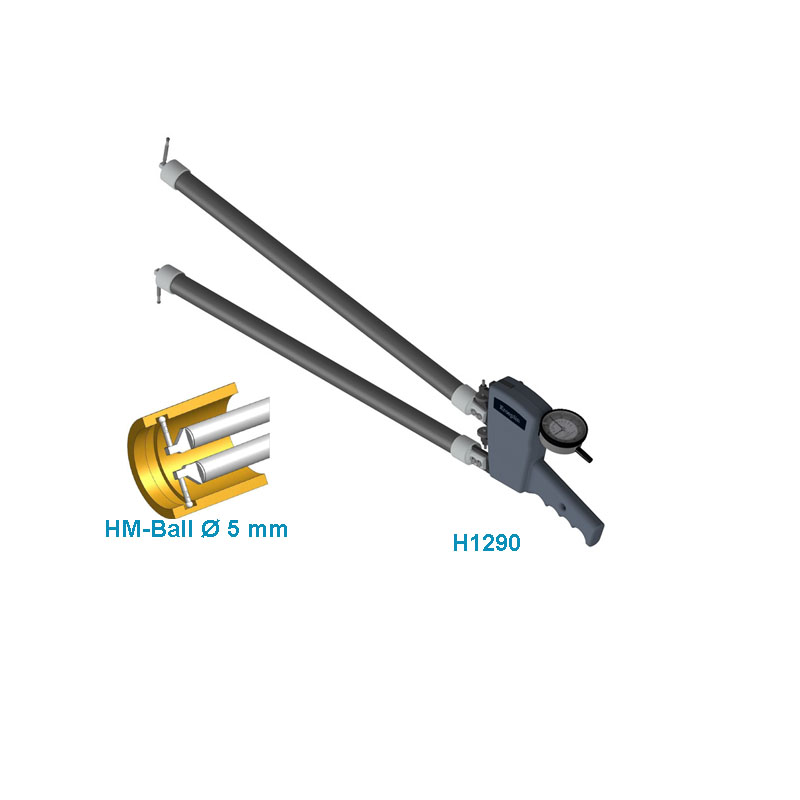

| H1290 | 90 ~ 190 | 0.1 | 0.1 | 0.1 | – | – | 13 | 13 | 566 |
